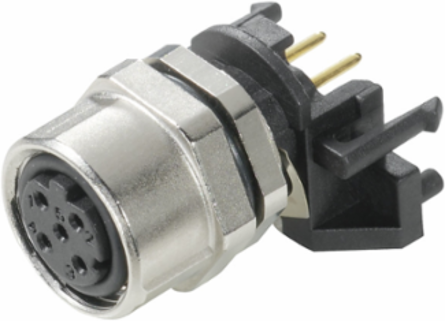

Weidmuller 8902820000 IE-M12-PCBCE-PANEL
- MPN: 8902820000
- PPN: WDM-8902820000
CAD
$26.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PCB connection element M12, M12, Cat.5 (ISO/IEC 11801), IP65 in acc. with DIN EN 60529
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 11.6 g
Standards
- Connector standard
- IEC 61076-2-101
General Info
- Connection 2
- M12
- Configuration
- Reflow compatible
- Category
- Cat.5 (ISO/IEC 11801)
- Shielding
- 360° shield contact
Description of articleConnecting element, clip-on
Housing main materialCuZn, Polyamide, nickel-plated
Connection threadM12
Protection degreeIP65 in acc. with DIN EN 60529
Classifications
- ETIM 6.0
- EC002638
- eClass 9.0
- 27-44-03-09
- eClass 10.0
- 27-44-03-09
ETIM 7.0EC002638
eClass 9.127-44-03-09
UNSPSC30-21-18-14
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature
- -25 °C...85 °C
Operating temperature, min.-25 °C
