Weidmuller 1061830000 IE-OP-V01P-1S
- MPN: 1061830000
- PPN: WDM-1061830000
CAD
$78.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

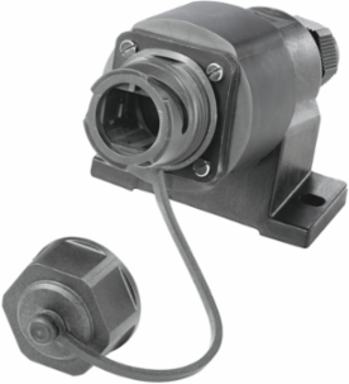

Wall-mounted junction box, IP67, Variant 1 to IEC 61076-3-106
Documentation & Downloads
Specifications
General Data
| Colour | black |
|---|---|
| Plugging cycles | 750 |
| Sheath diameter, max. | 9.5 mm |
| Type of mounting | Floor-mounted, for exposed connections, Wall mounting |
| Housing main material | PA UL 94 V0 |
|---|---|
| Protection degree | IP67 |
| Sheath diameter, min. | 6 mm |
Approvals
| ROHS | Conform |
|---|

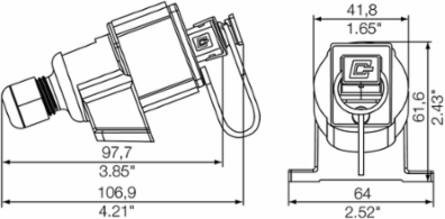

Dimensions And Weights
| Net weight | 84.2 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 1 |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.0 | 27-44-02-02 |
| eClass 10.0 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-03-92 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
