Weidmuller 8808380000 IE-P-IP67
- MPN: 8808380000
- PPN: WDM-8808380000
CAD
$30.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

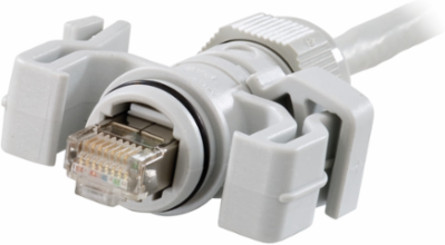

Connecting plug, Plug, IP67, Cat.6A / Class EA (ISO/IEC 11801 2010), Variant 6 to IEC 61076-3-106
Documentation & Downloads
Specifications
General Data
- Connection 1
- RJ45
- Description of article
- Plug
- Colour
- Light Grey
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Type of mounting
- Floor-mounted, for exposed connections, Wall mounting
- Protection degree
- IP67
Connection 2IDC
WiringEIA/TIA T568 A
Housing main materialPA 66, UL 94: V-0
Contact surfaceGold over nickel
Shielding360° shield contact
Plugging cycles750
Approvals
- Approvals
- DNV GL
ROHSConform
Dimensions And Weights
- Net weight
- 34 g
Standards
- Connector standard
- IEC 61076-3-106 Var. 6, IEC 60603-7-5
Certificate No. (GERMLLOYD)33451-06
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-90
- eClass 10.0
- 27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-03-90
UNSPSC43-17-27-10
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
