Weidmuller 1012440000 IE-PH-V01P
- MPN: 1012440000
- PPN: WDM-1012440000
CAD
$33.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

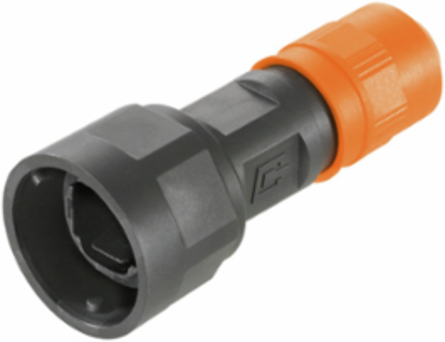

Empty enclosure, Plug housing, IP67
Documentation & Downloads
Specifications
General Data
| Configuration | Plug housing with labelling/marking holder: 9*11 mm; suitable for holding RJ45 and fibre-optic inserts |
|---|---|
| Plugging cycles | 750 |
| Sheath diameter, max. | 10 mm |
| Housing main material | PA UL 94 V0 |
|---|---|
| Protection degree | IP67 |
| Sheath diameter, min. | 5 mm |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 27.2 g |
|---|
Standards
| Connector standard | IEC 61076-3-106 Var. 1 |
|---|
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-02 |
| eClass 10.0 | 27-18-27-02 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-02 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
