Weidmuller 1504320000 IE-SW-BL05-1GT-4GTPOE
- MPN: 1504320000
- PPN: WDM-1504320000
CAD
$1867.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

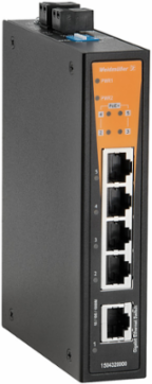

Network switch, unmanaged PoE, Gigabit Ethernet, Number of ports: 4 * RJ45 10/100/1000BaseT(X) PoE+, 1 * RJ45 10/100/1000BaseT(X), IP30, 0 °C...60 °C
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, CULUS, EAC, KOREANCERT |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Mtbf
| MTBF | 1,257,910 hrs |
|---|
| Database | Telcordia (Bellcore), GB |
|---|
Dimensions And Weights
| Width | 29 mm |
|---|---|
| Height | 135 mm |
| Depth | 105 mm |
| Net weight | 360 g |
| Width (inches) | 1.142 inch |
|---|---|
| Height (inches) | 5.315 inch |
| Depth (inches) | 4.134 inch |
Environmental Conditions
| Humidity | 5...95 %, no condensation |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
Classifications
| ETIM 6.0 | EC000734 |
|---|---|
| eClass 9.0 | 19-17-01-06 |
| eClass 10.0 | 19-17-04-02 |
| ETIM 7.0 | EC000734 |
|---|---|
| eClass 9.1 | 19-17-01-06 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Switch Characteristics
| Jumbo frame support | up to 10 KB |
|---|---|
| Packet buffer size | 1,024 Kbit |
| MAC table size | 8 K |
|---|
Technical Data
| Housing main material | Aluminium |
|---|---|
| Type of mounting | DIN rail, Panel (with optional mounting kit) |
| Protection degree | IP30 |
|---|
Emc Conformity And Approvals
| EMC standards | FCC Part 15 Subpart B Class A, EN 55032, EN 55024, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, EN 61000-4-8 |
|---|---|
| Shock | according to IEC 60068-2-27 |
| Security | UL508 |
|---|---|
| Vibration | according to IEC 60068-2-6 |
Interfaces
| DIP switch | Broadcast storm protection enable/disable, Enable/disable jumbo frame support, Activate/deactivate IEEE 802.3az energy-efficient Ethernet, Switching between standard PoE (up to 30 W) and High Power PoE (up to 36 W) |
|---|---|
| Number of ports | 4 * RJ45 10/100/1000BaseT(X) PoE+, 1 * RJ45 10/100/1000BaseT(X) |
| RJ45 ports | 10/100/1000BaseT(X), auto negotiation, Full-/half-duplex mode, Auto MDI/MDI-X port |
| LED indicator | PWR1, PWR2, 10/100/1000M (TP-Port), PoE |
|---|---|
| PoE pin assignment | V+, V+, V-, V-, for pins 1, 2, 3, 6 (endspan, MDI alternative A) |
Power Supply
| Connection type | 2 removable 2-pole terminal blocks |
|---|---|
| Inrush current | 17.4 A at 24 V DC (0.1 to 1 ms) |
| Power consumption | max. 11.73 W (without PD´s consumption) |
| Reverse polarity protection | Yes |
| Supply voltage, min. | 12 V DC |
| Voltage supply | 12/24/48 V DC, 2 redundant inputs |
| Current consumption | 5,92 A at 12 V DC, 5,65 A at 24 V DC, 3.21 A at 48 V DC |
|---|---|
| Overload current protection | Yes |
| Power loss | 36.4 BTU/h |
| Supply voltage, max. | 57 V DC |
| Total PoE power budget | 62 W at 12 V DC (12 to 17 V DC), 120 W at 24 V DC (18 to 35 V DC), 144 W at 48 V DC (36 to 57 V DC) |
Technology
| Data switching | Store and Forward |
|---|---|
| Standard | IEEE 802.3af for Power-over-Ethernet, IEEE 802.3at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for flow control, IEEE 802.3az Energy-Efficient Ethernet |
| Flow control | IEEE 802.3x flow control, Back pressure flow control |
|---|
