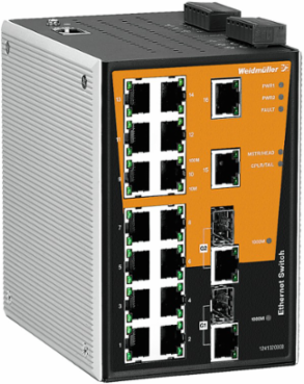

Weidmuller 1241320000 Managed Network Switch, 16 Ports RJ45, IP30, 0 C to 60 C

MPN: 1241320000
PPN: WDM-1241320000

$4459.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Network switch, managed, Fast/Gigabit Ethernet, Number of ports: 16 * RJ45 10/100BaseT(X), 2 * combo-ports (10/100/1000BaseT(X) or 1000BaseSFP), IP30, 0 °C...60 °C

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC
UL File Number Search	E230683

ROHS	Conform

Mtbf

MTBF	240,000 hrs

Database	Telcordia (Bellcore), GB

Dimensions And Weights

Width	94 mm
Height	135 mm
Depth	142.7 mm
Net weight	1,630 g

Width (inches)	3.701 inch
Height (inches)	5.315 inch
Depth (inches)	5.618 inch

Environmental Conditions

Humidity	5 to 95 % (non-condensing)
Operating temperature, min.	0 °C
Storage temperature, min.	-40 °C

Operating temperature, max.	60 °C
Storage temperature, max.	85 °C

Guarantee

Time interval	5 years

Classifications

ETIM 6.0	EC000734
eClass 9.0	19-17-01-06
eClass 10.0	19-17-04-01

ETIM 7.0	EC000734
eClass 9.1	19-17-01-06

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Switch Characteristics

Bandwidth backplane	7.2 Gbps
MAC table size	8 K
Packet buffer size	2 Mbit
VLAN-ID max	4,094

IGMP-Groups	256
Max. number of available VLANs	64
Priority queues	4
VLAN-ID min	1

Technical Data

Housing main material	metal
Type of mounting	DIN rail, Panel (with optional mounting kit)

Protection degree	IP30

Emc Conformity And Approvals

EMC standards	EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0,5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
Free fall	According to IEC 60068-2-32
Ship use	DNV-GL
Vibration	according to IEC 60068-2-6

Explosive risk zone	UL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Security	UL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
Shock	according to IEC 60068-2-27

Interfaces

Alarm contact	2 relay outputs with a current capacity of 1 A at 24 V DC
Digital inputs	2 inputs with the same ground, isolated+13 To +30 V for logic "1"-30 To +3 V for logic "0"Max. input current: 8 mA
LED indicator	PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port), 1000M (Gigabit-Port)
Number of ports	16 * RJ45 10/100BaseT(X), 2 * combo-ports (10/100/1000BaseT(X) or 1000BaseSFP)

Console port interface	RS-232
Fibre-optic ports	1000BaseSFP-Slot
Note 1	When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
RJ45 ports	10/100BaseT(X) or 10/100/1000BaseT(X), auto negotiation

Power Supply

Connection type	2 removable 6-pin terminal blocks
Overload current protection	Existing
Supply voltage, max.	45 V DC
Voltage supply	24 V DC, 2 redundant inputs

Current consumption	0.51 A at 24 V
Reverse polarity protection	Available
Supply voltage, min.	12 V DC

Technology

Data switching	Store and Forward
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Standard	IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for authentication, IEEE 802.3ad for port trunk with LACP

Flow control	IEEE 802.3x flow control, Back pressure flow control
Protocol	IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP option 66/67/82, SSH, SNMP Inform, Modbus/TCP, LLDP, IEEE 1588 PTP, IPv6
