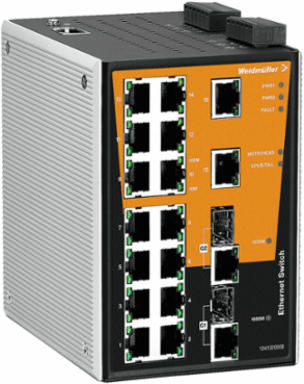

Weidmuller 1286970000 Managed Network Switch, 16 Ports, IP30, -40 C to 75 C Operating Temp
- MPN: 1286970000
- PPN: WDM-1286970000
CAD
$4919.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Network switch, managed, Fast/Gigabit Ethernet, Number of ports: 16 * RJ45 10/100BaseT(X), 2 * combo-ports (10/100/1000BaseT(X) or 1000BaseSFP), IP30, -40 °C...75 °C
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, CULUSEX, DEMKOATEX, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform
Mtbf
- MTBF
- 240,000 hrs
DatabaseTelcordia (Bellcore), GB
Dimensions And Weights
- Width
- 94 mm
- Height
- 135 mm
- Depth
- 142.7 mm
- Net weight
- 1,630 g
Width (inches)3.701 inch
Height (inches)5.315 inch
Depth (inches)5.618 inch
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.75 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 5 years
Classifications
- ETIM 6.0
- EC000734
- eClass 9.0
- 19-17-01-06
- eClass 10.0
- 19-17-04-01
ETIM 7.0EC000734
eClass 9.119-17-01-06
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Switch Characteristics
- Bandwidth backplane
- 7.2 Gbps
- MAC table size
- 8 K
- Packet buffer size
- 2 Mbit
- VLAN-ID max
- 4,094
IGMP-Groups256
Max. number of available VLANs64
Priority queues4
VLAN-ID min1
Technical Data
- Housing main material
- metal
- Type of mounting
- DIN rail, Panel (with optional mounting kit)
Protection degreeIP30
Emc Conformity And Approvals
- EMC standards
- EN 55032, EN 55024, CISPR 32, FCC Part 15 Subpart B Class A, IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 Ghz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0,5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8
- Free fall
- According to IEC 60068-2-32
- Ship use
- DNV-GL
- Vibration
- according to IEC 60068-2-6
Explosive risk zoneUL/cUL, Class I, Division 2, Groups A, B, C and D, ATEX Zone 2 Ex nA nC IIC T4 Gc
SecurityUL508, UL60950-1, CSA C22.2 No. 60950-1, EN60950-1
Shockaccording to IEC 60068-2-27
Interfaces
- Alarm contact
- 2 relay outputs with a current capacity of 1 A at 24 V DC
- Digital inputs
- 2 inputs with the same ground, isolated+13 To +30 V for logic "1"-30 To +3 V for logic "0"Max. input current: 8 mA
- LED indicator
- PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M (TP-Port), 1000M (Gigabit-Port)
- Number of ports
- 16 * RJ45 10/100BaseT(X), 2 * combo-ports (10/100/1000BaseT(X) or 1000BaseSFP)
Console port interfaceRS-232
Fibre-optic ports1000BaseSFP-Slot
Note 1When connecting a single-mode fiber transceiver over a short distance, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.
RJ45 ports10/100BaseT(X) or 10/100/1000BaseT(X), auto negotiation
Power Supply
- Connection type
- 2 removable 6-pin terminal blocks
- Overload current protection
- Existing
- Supply voltage, max.
- 45 V DC
- Voltage supply
- 24 V DC, 2 redundant inputs
Current consumption0.51 A at 24 V
Reverse polarity protectionAvailable
Supply voltage, min.12 V DC
Technology
- Data switching
- Store and Forward
- MIB
- MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
- Standard
- IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for flow control, IEEE 802.1D-2004 for the Spanning Tree protocol, IEEE 802.1w for Rapid STP, IEEE 802.1Q for VLAN tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for authentication, IEEE 802.3ad for port trunk with LACP
Flow controlIEEE 802.3x flow control, Back pressure flow control
ProtocolIGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP option 66/67/82, SSH, SNMP Inform, Modbus/TCP, LLDP, IEEE 1588 PTP, IPv6
