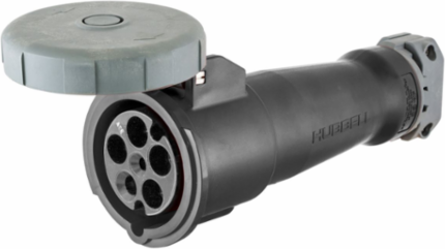

Hubbell Wiring Device-Kellems HBL530C5W Watertight Female Connector Body, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire
- MPN: HBL530C5W
- UPC: 783585405438
- PPN: HBL-HBL530C5W
- UNSPSC: 39121421
CAD
$714.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 30A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Black, Watertight
Features
- Insulated Non-Metallic housing
- Color coded housings by voltage for easy identification
- Corrosion-resistant self-closing gasketed cover
- Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 4.810 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682;Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
- Application
- High Ampacity Connections
- Conductor Range
- #12 AWG to #8 AWG
- Insulation
- Insulated Body
- Number of Conductors
- 5-Wire Grounding
- Special Features
- Watertight
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 3 Phase Y 347/600 VAC
- Engineering Drawing 1 Display Text
- HBL530C5W AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Connectivity
- Pressure Terminal Screws
- Nema Rating
- Non-NEMA
- Number Of Poles
- 4-Pole
- Style
- Standard Service
- Description - Invoice
- PS, IEC, CONN, 4P5W, 30A 347/600V,4X/69K
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A12A180
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 21.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Industry Standard(s)CSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
Amperage Rating30 A
ColorBlack
Environmental ConditionsWatertight
NEMA RatingNon-NEMA
Number of Poles4-Pole
StandardCSA Certified File LR280C;UL Classified to IEC 60309-1 IEC 60309-2;UL Listed, File E146033
TypeWatertight Connector Body
Voltage Rating Description3 Phase Y 347/600 VAC
General Literature Asset 1 Display TextIEC Pin & Sleeve Devices
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard
Number Of Conductors5-Wire Grounding
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number530C5W
Material - Mounting HardwareCord Mounted
SeriesHBL Heavy Duty
BOX SIZE10.745x23.125x10.745 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585405438
Each - Pack DescriptionEach
NAICS Code335931A104
