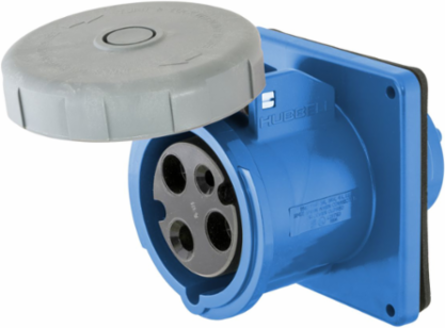

Hubbell Wiring Device-Kellems HBL360R6W Heavy Duty IEC Pin and Sleeve Receptacle, 60A 250V AC, Watertight
- MPN: HBL360R6W
- UPC: 783585403861
- PPN: HBL-HBL360R6W
- UNSPSC: 39121406
CAD
$692.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 60A 250V AC, 2-Pole 3- Wire Grounding, Terminal Screws, Blue, Watertight
Features
- Self-closing gasketed cover
- Color coded housings for easy identification
- Super tough insulated non-metallic housing
- Watertight
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 5.600 in |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 3000V AC;Electrical - Max. Working Voltage - 600V RMS;Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17;Environmental - Ingress Protection - IP67 Suitability;Environmental - Moisture Resistance - Watertight per IEC 60309-1;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum - 40°C w/o impact;Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682;Mechanical - Product Identification - Ratings are a permanent part of the device housing;Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions |
| Application | High Ampacity Watertight Connections |
| Environmental Conditions | Watertight |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Standard | Listed To Standard UL1682 |
| Voltage Rating | 250 VAC |
| Wire Size | #8 AWG to #2 AWG |
| Weight | 2.24 lb. |
| General Literature Asset 1 Display Text | Dual-Certified IEC Pin & Sleeve Devices |
| General Literature Asset 3 Display Text | IEC Pin & Sleeve Devices |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Style | Standard Service |
| Description - Invoice | RECPT, 2P3W,60A 250V/63A220-240V,4X/69K |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A12A180 |
| Current Rating | 60 A |
| Series | HBL Heavy Duty |
| BOX SIZE | 7.900x24.500x11.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585403861 |
| Case Weight | 23.390 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 47.400 in |
| Pallet Weight | 831.600 lb. |
| NAICS Code | 335931A104 |
| Current / Amperage Rating | 60 A |
|---|---|
| Industry Standard(s) | Listed To Standard UL1682 |
| Amperage Rating | 60 A |
| Color | Blue |
| NEMA Rating | Non-NEMA |
| Number of Wires | 3-Wire |
| Special Features | Watertight |
| Type | Watertight Receptacle |
| Wattage | 15000 W |
| Voltage Rating Description | 250 VAC |
| Engineering Drawing 1 Display Text | HBL360R6W AutoCAD Drawing |
| General Literature Asset 2 Display Text | Hubbell Marine Full Line Catalog |
| Connectivity | Pressure Terminal Screws |
| Nema Rating | Non-NEMA |
| Number Of Wires | 3-Wire |
| Class Code | A12 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 360R6W |
| Material - Mounting Hardware | Screw Mounting |
| Material | Thermoplastic |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 24.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585403860 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
