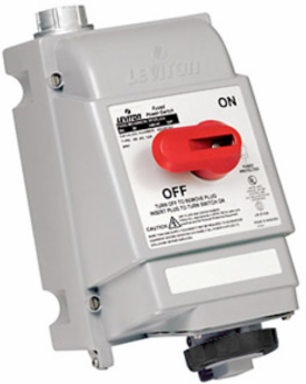

Leviton 430MF5W 30 Amp 600 Volt 3-Phase Mechanical Interlock Receptacle, IP67 Watertight
- MPN: 430MF5W
- PPN: LEV-430MF5W
CAD
$3110.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp 600 Volt 3-Phase Mechanical Interlock Receptacle, IP67 Watertight
Documentation & Downloads
Specifications
Standards and Certifications
- Warranty
- 2-Year Limited
- UL 98
- Fused
- UL
- 231 & 1686
IEC Rating60309-1 and 60309-2
CSAC22.2
CE MarkingPer low voltage directives 73/23/EEC, 93/68/EEC
Material Specifications
- Switch Material
- Reinforced Nylon
- Gasket Material
- Chloroprene
- Locking Mechanism
- Valox 357
- Ground Contacts
- Brass
- Internal Screws
- Zinc-plated steel
- Handle Material
- Valox 357
- Phase and Ground Sleeves
- Brass
- Locking Ring
- Valox 357
- Contact Carrier
- Nylon
Cover EyeletNickel-Plated Brass
Conduit Grounding PlateZinc-Coated Steel
Switch Terminal ContactsBrass
Housing ScrewsStainless Steel
Housing MaterialValox 357
Switch ContactsCadmium-Free Silver Alloy
Cover with ArmValox 357
Actuator MaterialZinc-Coated Steel
Mechanical Specifications
- Impact
- 1.2 lb ball dropped from 5 ft
- Pullout
- 18 lb pull on internal wires
- Mold Stress Relief
- 70ºC for 7 hours
Crush Test100 lbs
Strength of Insulating Base and Support110% of specified tightening torque on terminal screws
Cold ImpactSame as above, after conditioning to -35C
Product Features
- Color
- Black
- Configuration
- North American
- Country Of Origin
- Please Contact Customer Service.
Device TypeMechanical Interlock
Fuse TypeClass J Fuses
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- UV Resistance
- Exposed plastic materials are UV stabilized
- Rain
- Type 3R per UL 50
- Operating Temperature
- -40°C to 60°C
IP RatingIP67/IP69K
Gasket Aging70C for 168 hours
HosedownType 4X per UL 50
DustType 12K per UL 50
Electrical Specifications
- Amperage
- 30 A
- Dielectric Voltage
- 1000 V plus rated voltage for 1-minute
- Endurance
- 6,000 cycles inductive motor type load
- Voltage
- 600 VAC
Wire4
Current InterruptingCertified for current interrupting at full rated current
Pole3
Phase3-Phase
AC Horsepower Ratings
- At Rated Voltage
- 20 HP
