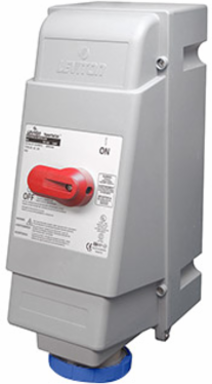

Leviton 360MF6W 60 Amp, 240 Volt, IEC 309-1 & 309-2, 2P, 3W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Fused - BLUE
Leviton 360MF6W 60 Amp, 240 Volt, IEC 309-1 & 309-2, 2P, 3W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Fused - BLUE
- MPN: 360MF6W
- PPN: LEV-360MF6W
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3239.75/ EA
Description
60 Amp, 240 Volt, IEC 309-1 & 309-2, 2P, 3W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Industrial Grade, IP67, Watertight, Fused - BLUE
Specifications
Standards and Certifications
- Warranty
- 2-Year Limited
- UL 98
- Fused
- UL
- 231 & 1686
IEC Rating60309-1 and 60309-2
CSAC22.2
CE MarkingPer low voltage directives 73/23/EEC, 93/68/EEC
Material Specifications
- Switch Material
- Reinforced Nylon
- Gasket Material
- Chloroprene
- Locking Mechanism
- Valox 357
- Ground Contacts
- Brass
- Internal Screws
- Zinc-plated steel
- Handle Material
- Valox 357
- Housing Screws
- Stainless Steel
- Cover with Arm
- Valox 357
- Actuator Material
- Zinc-Coated Steel
- Contact Carrier
- Nylon
Cover EyeletNickel-Plated Brass
Conduit Grounding PlateZinc-Coated Steel
Switch Terminal ContactsBrass
Ground BussBrass
Housing MaterialValox 357
Switch ContactsCadmium-Free Silver Alloy
Phase and Ground SleevesBrass
Locking RingValox 357
Neutral BussBrass
Mechanical Specifications
- Impact
- 1.2 lb ball dropped from 5 ft
- Pullout
- 18 lb pull on internal wires
- Mold Stress Relief
- 70ºC for 7 hours
Crush Test100 lbs
Strength of Insulating Base and Support110% of specified tightening torque on terminal screws
Cold ImpactSame as above, after conditioning to -35C
Product Features
- Color
- Blue
- Configuration
- North American
- Country Of Origin
- Please Contact Customer Service.
Device TypeMechanical Interlock
Fuse TypeClass J Fuses
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
- UV Resistance
- Exposed plastic materials are UV stabilized
- Rain
- Type 3R per UL 50
- Operating Temperature
- -40°C to 60°C
IP RatingIP67/IP69K
Gasket Aging70C for 168 hours
HosedownType 4X per UL 50
DustType 12K per UL 50
Electrical Specifications
- Amperage
- 60 A
- Dielectric Voltage
- 1000 V plus rated voltage for 1-minute
- Endurance
- 6,000 cycles inductive motor type load
- Voltage
- 240 VAC
Wire3
Current InterruptingCertified for current interrupting at full rated current
Pole2
