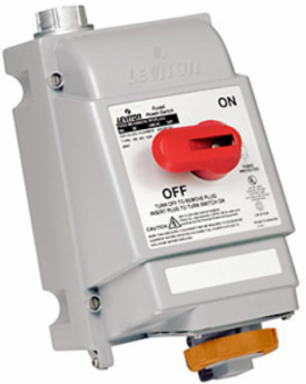

Leviton 430MI12W 30 Amp Mechanical Interlock, IP67 Waterproof, 125/250 Volt

30 Amp Mechanical Interlock, IP67 Waterproof, 125/250 Volt

Leviton 430MI12W 30 Amp Mechanical Interlock, IP67 Waterproof, 125/250 Volt

MPN: 430MI12W
UPC: 078477125748
PPN: LEV-430MI12W

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1719.43/ EA

Loading add to cart quantity...

Description

30 Amp, 125/250 Volt, IEC 309-1 & 309-2, 3P, 4W, Mechanical Interlock North American Pin & Sleeve Receptacle, Hub Sold Separately (See Leviton Cat Number HUB-xxx), Grade, IP67, Watertight, Non-Fused - ORANGE

Specifications

Standards and Certifications

CE Marking: Per low voltage directives 73/23/EEC, 93/68/EEC

IEC Rating: 60309-1 and 60309-2

UL 508: Non-Fused

CSAC22.2

UL231 & 1686

Warranty2-Year Limited

Material Specifications

Actuator Material: Zinc-Coated Steel

Contact Carrier: Nylon

Cover Locking Mechanism: Valox 357

Gasket Material: Chloroprene

Handle Material: Valox 357

Housing Screws: Stainless Steel

Locking Ring: Valox 357

Switch Contacts: Cadmium-Free Silver Alloy

Switch Terminal Contacts: Brass

Conduit Grounding PlateZinc-Coated Steel

Cover EyeletNickel-Plated Brass

Cover with ArmValox 357

Ground ContactsBrass

Housing MaterialValox 357

Internal ScrewsZinc-plated steel

Phase and Ground SleevesBrass

Switch MaterialReinforced Nylon

Mechanical Specifications

Cold Impact: Same as above, after conditioning to -35C

Impact: 1.2 lb ball dropped from 5 ft

Pullout: 18 lb pull on internal wires

Crush Test100 lbs

Mold Stress Relief70ºC for 7 hours

Strength of Insulating Base and Support110% of specified tightening torque on terminal screws

Specifications

Country of Origin: Please Contact Customer Service

RoHS CompliantFalse

Product Features

Color: Orange

Device Type: Mechanical Interlock

ConfigurationNorth American

SeriesStandard Series

Environmental Specifications

Dust: Type 12K per UL 50

Gasket Aging: 70C for 168 hours

IP Rating: IP67/IP69K

Rain: Type 3R per UL 50

FlammabilityRated V-0 per UL 94

HosedownType 4X per UL 50

Operating Temperature-40°C to 60°C

UV ResistanceExposed plastic materials are UV stabilized

Electrical Specifications

Amperage: 30 A

Dielectric Voltage: 1000 V plus rated voltage for 1-minute

Pole: 3

Wire: 4

Current InterruptingCertified for current interrupting at full rated current

Endurance6,000 cycles inductive motor type load

Voltage125/250 VAC
