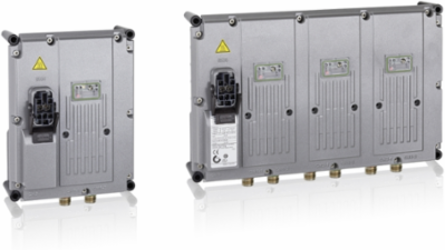

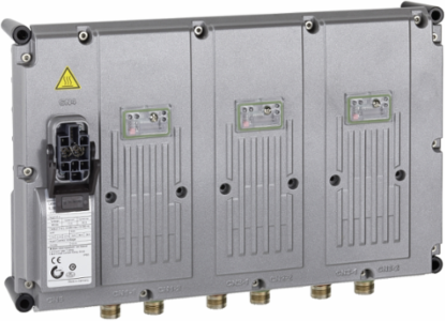

Schneider Electric ILM62DDD24B1000 Detached Triple Servo Drive, 2.7A Continuous Current, IP65

MPN: ILM62DDD24B1000
PPN: SCH-ILM62DDD24B1000
UNSPSC: 39121021

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This product is part of the Lexium 62 ILD and Motors range, an offer of detached servo drives. This servo drive is equipped with a STO (safe torque off) safety function. It is a detached triple servo drive with a supply voltage of 250V to 700V, a rated continuous current of 2.7A and peak current of 24A. It is an IP65 rated product. It weighs 5.3kg. It is suitable for general machine control, packaging machine automation and material handling applications. This product is certified by CE and CULus. It meets EN/IEC 61800-5-2, EN/IEC 61800-5-1, UL 618000-5-1, CSA C22.2 No 274, EN/IEC 61800-3 and EN/ISO 13849-1 standards. This product is compatible with servo motor MH3, motor asynchronous motor and servo motor SH3 ≤2.7A. The Lexium 62 ILD detached servo drives are part of the Lexium 62 multiaxis servo approach for PacDrive 3 based automation solutions. Detached servo drives for PacDrive 3 based automation solutions with servo motors or AC motors with rated current up to 6A.

Features

Mounted directly in the machine frame
Plug and play technology with pre assembled hybrid cables
Up to 90% less wiring time
Up to 70% less cabling
Automatic network configuration

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Germany, United States

Complementary Attributes

Line Rated Current	2.7 A natural convection

Us Rated Supply Voltage	24 V

Important Information Attributes

Persona Type Ids	EU, OM
Type Of Cooling	fanless, natural convection
Local Data Status	Publishable
Return Indicator	Y
Serviceability	Yes
Field Service Division	IDIBS
Scope Perimeter	At least in Europe
Without Single Use Plastic	No
Tier Id	3
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Number Of Mounting Holes	4
Product Or Component Type	detached servo drive
Returnability	Yes
Sustainable Packaging	No
Customs Code	8501524000

Persona Type Names	End User, Original Equipment Manufacturer
Certificate Agency	cULus, CE
Local Publishable Date	2026-08-06
Device Type	Motion - integrated drive
Traceability	Yes
Average Life Duration	15 year(s)
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	3
Function Option	Advanced
Market Segmentation	Industrial
Device Short Name	ILD
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	PacDrive 3
Safety Function	STO (safe torque off)
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

Directives	2014/35/EU - low voltage directive, 2006/42/EC - machinery, 2014/30/EU - electromagnetic compatibility
Recycled Metal Content At Cr Level	0 %
Ip Degree Of Protection	IP65
Packaging Without Single Use Plastic	No

Take Back	No
Eu Rohs Directive	Under investigation
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	servo motor MH3motor asynchronous motorservo motor SH3 2.7 A
