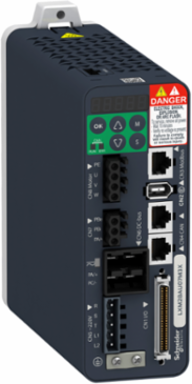

Schneider Electric LXM28AU01M3X Lexium 28 Motion Servo Drive, 100W, 200-240V, 2.7A, IP20
- MPN: LXM28AU01M3X
- PPN: SCH-LXM28AU01M3X
CAD
$1064.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The motion servo drive without EMC filter, features a HMI interface 7-segment display with 5 buttons. Thanks to its open communication concept, Lexium 28 servo drive can be easily integrated into numerous different control system architectures. It is a motion servo drive with a rated supply voltage of 220V (single and three phase), an output current of 2.7A at 220V, a power of 100W/0.13HP and a continuous power of 100W at 220V. It is furnished with spring terminal for electrical connection and RJ45 connectors for CANopen, CANmotion integrated communication interfaces. Physical interface is RS485 for Modbus Serial line slave. It is an IP20 rated product. Its dimensions are 55mm (Width) x 146mm (Depth) x 150mm (Height). It weighs 1kg. This product is certified by CE, CSA and CULus. It meets EN/IEC 61800-5-1 standards. This product is compatible with servo motor BCH2 (40mm, 2 motor stacks) at 100W. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Switzerland, China, France, Sweden
Depth146 mm
Communications & Management Attributes
- Communication Interface
- CANopen, Integrated, CANmotion, Integrated
Complementary Attributes
- Line Rated Current
- 0.9 A
- Maximum Current Irms
- 2.7 A
- Maximum Operational Altitude
- 3000.0 m
- Minimum Operational Altitude
- 0.0 m
Maximum Ambient Air Temperature For Operation55.0 °C
Maximum Leakage Current1.3 mA
Minimum Ambient Air Temperature For Operation0.0 °C
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Electrical Connection
- spring terminal 0.82...1 mm², 18 AWG L1-L2), spring terminal 0.82...1 mm², 18 AWG R, S, T), spring terminal 0.82...1 mm², 18 AWG U, V, W, PE), spring terminal 0.82...1 mm², 18 AWG PA/+, PBe)
- Marking
- CE, cULus
- Nominal Voltage
- 220 V single phase, 220 V three phase
- Protection Type
- against reverse polarity inputs signalagainst short-circuits outputs signalovercurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
- Status Led
- 1 LED (Red) charge1 LED (Green) RUN, 1 LED (Red) error
- Supply Voltage Description
- single phase 220 V AC 50...60 Hz, three phase 220 V AC 50...60 Hz
- Certificate Agency
- CE, cULus
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1625655405, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.012204973
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 422 kg CO2 eq., 421.5061348737
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Continuous Power
- 100 W 220 V
- Derating Altitude Start
- 1000.0 m
- Device Short Name
- LXM28A
- Electrical Isolation
- between power and control
- Emc Filter
- without EMC filter
- Format Of The Drive
- compact housing
- Maximum Operational Altitude
- 3000.0 m
- Minimum Ambient Air Temperature For Operation
- 0.0 °C
- Network Frequency
- 47.5...63 Hz
- Number Of Addresses
- 1-127 CANopen, CANmotion
- Overvoltage Category
- III
- Product Or Component Type
- motion servo drive
- Returnability
- Yes
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Software Version
- EIME v5.6.0.1
- Supply Voltage Limits
- 200-255 V three phase170-255 V single phase
- Switching Frequency
- 16 kHz
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 860.3202
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 55 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504404000
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Emc Filter Compatibilitytype 022, type 020
Network Number Of Phases3, 1
Phasethree phase, single phase
Safety LevelSIL 2 IEC 61800-5-2 2007SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/ACSIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/ACSIL 2 IEC 62061 2012
Supply Voltage200-240 V single phase, 200-240 V three phase
Transmission Rate250 kbit/s 100-250 m CANopen, CANmotion500 kbit/s 4-100 m CANopen, CANmotion, 1 Mbit/s 4-4 m CANopen, CANmotion
[Us] Rated Supply Voltage200...240 V - 10...15 %)three phase200...240 V - 20...15 %)single phase, 230 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5760243243, 0.6 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]21 kg CO2 eq., 21.4310675676
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1906
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Connector TypeRJ45 CN4)CANopen, CANmotion
Control Signal Typeservo motor encoder feedback CN2
Derating Temperature Start40.0 °C
Drive Voltage Drop Coefficient1
Electromagnetic Compatibilityconducted emission - test level: level 3 category C3 conforming to IEC 61800-3
Field Weakeningfalse
Line Current1.2 A 239.2 % 220 V, single phase1.2 A 212.7 % 220 V, three phase
Method Of Accessslave
Minimum Operational Altitude0.0 m
Nominal Power0.1 kW 220 V 16 kHz
Operating Positionvertical
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLexium 28
Safety FunctionSTO (safe torque off), Integrated
Signalling Functionservo status and fault codes five 7-segment display units
Supply Frequency50/60 Hz - 5...5 %
Sustainable PackagingNo
Total Lifecycle Carbon Footprint444 kg CO2 eq.
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal150 mm
Maximum [In] Rated Current0.9 A
Package Weight(Lbs)1.276 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-65 °C, -25-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 443.6879972791
- Circularity Profile
- ENVEOLI1409001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- servo motor BCH2 40 mm, 2 100 W
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Environmental DisclosureENVPEP1409001EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1409001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Output Current 3s Peak
- 220 V, 2.7 A
- Continuous Output Current
- 0.9 A 16 kHz
- Discrete Output Number
- 5 logic output CN1)12...24 V DC1 pulse train output (PTO) CN1)
Output Voltage<= power supply voltage, <= power supply voltage
Discrete Output Logicpositive or negative CN1)
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- Emc Filter Compatibility
- type 022, type 020
Emc Filterwithout EMC filter
Input Attributes
- Analogue Input Type
- V_REF voltage analog input - 10...10 V 10 kOhm 14 bits, T_REF voltage analog input
- Discrete Input Logic
- positive or negative CN1)
- Discrete Input Voltage
- 24 V DC logic
Analogue Input Number2
Discrete Input Number8 programmable CN1)1 pulse train input (PTI) CN1)2 fast capture CN1)1 safety function STO CN9)
