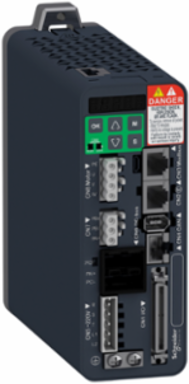

Schneider Electric LXM28SU01M3X Lexium 28 Motion Servo Drive, 100W, 200-240V, 2.7A, IP20
- MPN: LXM28SU01M3X
- PPN: SCH-LXM28SU01M3X
CAD
$1330.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lexium 28 Motion Servo Drive, 100W, 200-240V, 2.7A, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth146 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Integrated, SERCOS III, Integrated
Complementary Attributes
- Line Rated Current
- 0.9 A
- Maximum Leakage Current
- 1.3 mA
Maximum Current Irms2.7 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Connector Type
- RJ45 CN3), RJ45 CN4)
- Emc Filter Compatibility
- type 022, type 020
- Marking
- CE, cULus
- Nominal Voltage
- 220 V single phase, 220 V three phase
- Protection Type
- against reverse polarity inputs signal, against short-circuits outputs signal, overcurrent motor, overvoltage motor, undervoltage motor, overheating motor, overload motor, overspeed motor
- Status Led
- 1 LED (Red) charge, 1 LED (Green) RUN, 1 LED (Red) error
- Supply Voltage Description
- single phase 220 V AC 50...60 Hz, three phase 220 V AC 50...60 Hz
- Certificate Agency
- CE, cULus
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1652749662, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0124083892, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 422 kg CO2 eq., 421.5061348737
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 4
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Control Signal Type
- servo motor encoder feedback CN2
- Drive Voltage Drop Coefficient
- 1
- Electromagnetic Compatibility
- conducted emission - test level: level 3 category C3 conforming to IEC 61800-3
- Field Weakening
- false
- Method Of Access
- slave
- Nominal Power
- 0.1 kW 220 V 16 kHz
- Overvoltage Category
- III
- Product Or Component Type
- motion servo drive
- Returnability
- No
- Shock Resistance
- 10 gn, type I IEC 60721-3-3
- Software Version
- EIME v5.6.0.1
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 444 kg CO2 eq.
- Type Of Cable
- shielded motor cable 0-55 °C) copper
- Vibration Resistance
- 3M4 3 mm 9-200 Hz)IEC 60721-3-3
- Pep Code
- ENVPEP1409001EN
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control AC-servo motors BCH2 100% of the time for 10 years
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 860.3202
- Energy Model - Installation [A5]
- Electricity mix; AC; < 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; < 1kV; EU-27
- Width Nominal
- 55 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electrical Connectionspring terminal 0.82...1 mm², AWG 18 L1-L2), spring terminal 0.82...1 mm², AWG 18 R, S, T), spring terminal 0.82...1 mm², AWG 18 U, V, W, PE), spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)
Line Current1.2 A 239.2 % 220 V, single phase, 1.2 A 212.7 % 220 V, three phase
Network Number Of Phases3, 1
Phasethree phase, single phase
Safety LevelSIL 2 IEC 61800-5-2 2007, SIL 2 IEC 61508-1 2010, PL d/category 3 ISO 13849-1 2008, SIL 2 ISO 13849-1 2009/AC, SIL 2 IEC 60204-1 2006, SIL 2 IEC 60204-1 2009/A1, SIL 2 IEC 60204-1 2010/AC, SIL 2 IEC 62061 2012
Supply Voltage200-240 V single phase, 200-240 V three phase
Supply Voltage Limits200-255 V three phase, 170-255 V single phase
[Us] Rated Supply Voltage200...240 V - 10...15 %)three phase, 200...240 V - 20...15 %)single phase, 230 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.5856247297
Carbon Footprint Of The Manufacturing Phase [A1 To A3]22 kg CO2 eq., 21.788252027
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1409001EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2014
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier4
Function OptionAdvanced
Market SegmentationIndustrial
Continuous Power100 W 220 V
Device Short NameLXM28S
Electrical Isolationbetween power and control
Emc Filterwithout EMC filter
Format Of The Drivecompact housing
Network Frequency47.5...63 Hz
Operating Positionvertical
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium 28
Safety FunctionSTO (safe torque off), Integrated
Signalling Functionservo status and fault codes five 7-segment display units
Supply Frequency50/60 Hz - 5...5 %
Switching Frequency16 kHz
Transmission Rate9600 bauds...115200 bauds (automatic detection) 100-100 m
Type Of Coolingnatural convection
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; < 1kV; EU-27
Height Nominal150 mm
Maximum [In] Rated Current0.9 A
Package Weight(Lbs)1.281 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-65 °C, -25-65 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 444.0576949859
- Circularity Profile
- ENVEOLI1409001EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- servo motor BCH2 40 mm, 2 100 W
- Relative Humidity
- 5-95 % without condensation
- Pep Verification Date
- 2020-11-01
- Type Of Verification For The Pep
- Independent internal review
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation0-55 °C
Environmental DisclosureENVPEP1409001EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1409001EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- three phase, single phase
- Range Of Product
- Lexium 28
Product Or Component Typemotion servo drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Discrete Output Number
- 4 logic output CN1)12...24 V DC, 1 pulse train output (PTO) CN1)
- Output Voltage
- <= power supply voltage, <= power supply voltage
- Discrete Output Logic
- positive or negative CN1)
Output Current 3s Peak2.7 A 220 V, 2.7 A
Continuous Output Current0.9 A 16 kHz
Discrete Output Voltage12...24 V DC
Surge Protection And Filtering Attributes
- Emc Filter Compatibility
- type 022, type 020
Emc Filterwithout EMC filter
Input Attributes
- Discrete Input Number
- 8 programmable CN1), 2 fast capture CN1), 1 safety function STO CN9)
- Discrete Input Voltage
- 24 V DC logic
Discrete Input Logicpositive or negative CN1)
