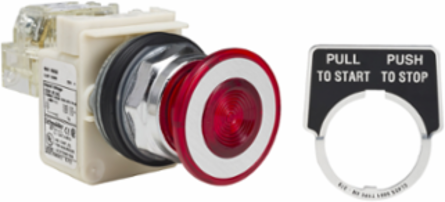

Square D 9001KR9P38RH13 Illuminated Mushroom Push Button 30 mm Red, 120V, 1 C/O
Square D 9001KR9P38RH13 Illuminated Mushroom Push Button 30 mm Red, 120V, 1 C/O
- MPN: 9001KR9P38RH13
- UPC: 785901346630
- PPN: SCH-9001KR9P38RH13
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$332.62/ EA
Description
This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs It weights 0.185 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Specifications
- Operator Additional Information
- screw-on plastic
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
Device Short NameK
Environment
- Product Certifications
- CSA LR 25490 class 3211 03 || NEMA || UL listed file E42259 CCN NKCR || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
Complementary
- [Us] Rated Supply Voltage
- 120 V
- Bezel Material
- metal
- Contact Operation
- standard
- Light Source
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operator Profile
- mushroom Ø 41 mm
- Cap/Operator Or Lens Colour
- red
- Bulb Base
- BA 9s
Contacts Type And Composition1 C/O
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Operator Position Information2 positions
Light Block Supplywithout supply
Light Block Supplyfull voltage or resistor
Type Of Operatorpush-pull
Size30 mm
Device Presentationcomplete product
