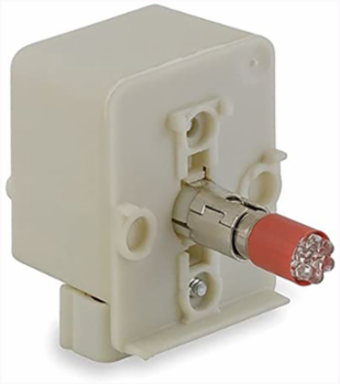

Schneider Electric 9001KM38LR Harmony 9001K 30mm LED Red Light Module, 120V, UL Listed
- MPN: 9001KM38LR
- UPC: 785901300359
- PPN: SCH-9001KM38LR
CAD
$147.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony® 9001K and 9001SK 30mm control and signaling range has a large choice of products to meet a great number of applications in heavy industries. These product lines have a large variety of push buttons, selector switches and pilot lights. Illuminated devices in this product line use a replaceable light module to do the illuminating. These light modules provide clear visual feedback on the status of the machine. The various light modules can be used on a range voltages from 6 to 600 VAC or 6 to 480 VDC. This light module with internal resistance is designed for 120 VAC or VDC circuits. Light modules have either an incandescent or an LED lamp. This light module has a red LED lamp. This light module is for pilot lights, illuminated push buttons and illuminated selector switches with a clear or red lens cap. These light modules are UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Product Or Component Type | light module, light block |
| Certificate Agency | UL Listed, CSA, NEMA |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | 9001K |
| Light Block Supply | direct via integral resistance 1.4 VA |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8531809026 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
| [Us] Rated Supply Voltage | 120 V AC 50...60 Hz, 120 V DC |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Bulb Base | BA 9s |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Light Source | LED (bulb included) |
| Protective Treatment | TC |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2503027EN |
| Package Weight(Lbs) | 73.482 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -13-158 °F, -25-70 °C, -13-158 °F |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503027EN |
| Ip Degree Of Protection | IP10 IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
General Attributes
| Product Or Component Type | light module, light block |
|---|
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
