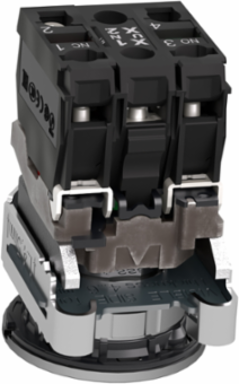

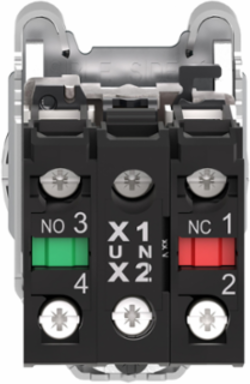

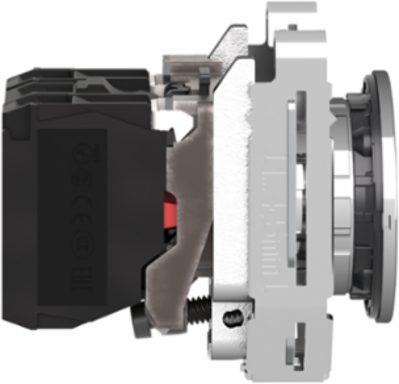

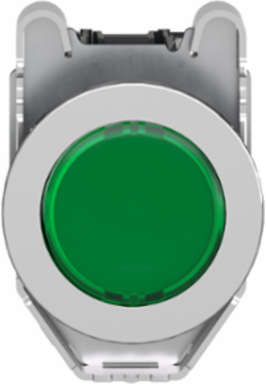

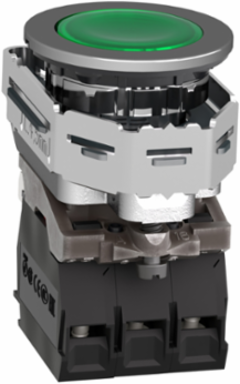

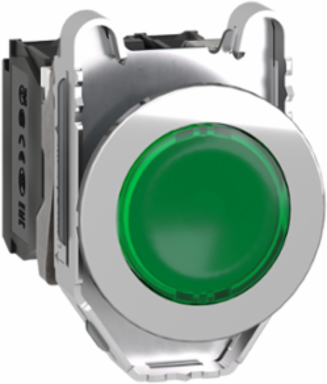

Schneider Electric XB4FW33B5 Harmony XB4 Illuminated Push Button, 30mm, Green, 1NO + 1NC, 24V AC/DC
- MPN: XB4FW33B5
- PPN: SCH-XB4FW33B5
CAD
$91.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony XB4 Illuminated Push Button, 30mm, Green, 1NO + 1NC, 24V AC/DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- green
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Supply Voltage
- 24 V
- Certificate Agency
- UL Listed, CSA, CCC, EAC
- [Us] Rated Supply Voltage
- 24 V, 24 V AC/DC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0201550877, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0185242105, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 13 kg CO2 eq., 12.861
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Use Carbon Footprint
- 12.861
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 17 %
- Bezel Material
- chromium plated metal
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts
- Device Short Name
- XB4F
- Electromagnetic Emission
- class B IEC 55011
- Fixing Mode
- by screws 0.8 N.m
- Head Type
- built-in-flush
- Light Source
- universal LED
- Mounting Diameter
- 30.5 mm
- Operator Additional Information
- with plain lens
- Positive Opening
- with IEC 60947-5-1 appendix K
- Product Or Component Type
- illuminated push-button
- Protective Treatment
- TH
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4
- Returnability
- Yes
- Service Life
- 100000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Supply Voltage Limits
- 19.2-30 V DC21.6-26.4 V AC
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 47 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 12.847
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 285.02
- Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]
- 0.1631
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 1.9222
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 285.02
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 54.953
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.1484
- Customs Code
- 8536509035
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force3.5 N NC changing electrical state, 3.8 N
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Cap Operator Or Lens Colorgreen
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2099140351
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9482789474
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1808008EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content28 %
Bulb Baseintegral LED
Contact Operationslow-break
Contacts Type And Composition1 NO + 1 NC
Current Consumption18 mA
Electrical Shock Protection Classclass I conforming to IEC 60536
Fixing Collar Materialzamak
Gcr BridgeXB4FWCUST02
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability10000000 cycles
Operating Travel1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Operator Profilegreen flush
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shape Of Signaling Unit Headround
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP1808008EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %75
Width Nominal36.6 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourgreen
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)127.000 g
Take-backNo
Climate Change - Biogenics ( Kg Co2 Eq.) Operational Energy Use [B6]0.0138
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]12.861
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]157.38
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]12.918
Photochemical Ozone Formation (Kg Of Nmvoc Equiv) Operational Energy Use [B6]0.028
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]339.97
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]285.02
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]54.953
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 17 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1808008EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint14.0578722807
Environmental DisclosureENVPEP1808008EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
