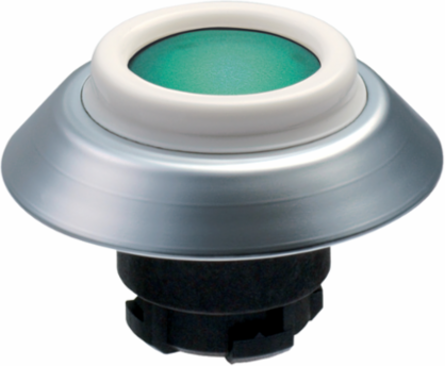

Schmersal 101163547 NDLGN

NDLGN

Schmersal 101163547 NDLGN

MPN: 101163547
PPN: SCM-101163547

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$38.77/ EA

Loading add to cart quantity...

Description

NDLGN

Specifications

Electrical data

Switching frequency: 1,000 /h

Number of contact elements, maximum2

Mechanical data - Dimensions

Height: 28 mm

Diameter of touch surface: 27 mm

Mounting diameter: 22.3 mm

Thickness of the front panel, maximum: 6 mm

Diameter total44.5 mm

Diameter of the front ring44.5 mm

Thickness, of the front panel, minimum1.5 mm

Spacing50 x 50 mm

General data - Features

Illuminable: Yes

Probing possible: Yes

Mounting flangeYes

Fully insulatedYes

General data

Standards: EN IEC 60947-5-1 | EN IEC 60947-1

Design: Tactile

Sealing type: Membrane | Lip gaskets

Material of the front ring: ABS, chrome-plated

Colour of the front ring: Silver

Gross weight: 30 g

VersionsIlluminated pushbutton

Installation conditions (mechanical)arbitrarily

Material of the operatorsABS

Colour of the operating elementGreen

Colour of the bellowsWhite

Ambient conditions

Degree of protection: IP67 | IP69K

Restistance to shock: 30 g / 18 ms

Ambient temperature-25 ... +80 °C

Mechanical data

Unlocking: without

Actuating stroke: 5 mm

Mounting: Mounting flange ELM

Mechanical life, minimum1,000,000 Operations

Actuating force, approx.1.5 N

Tightening torque of the screw0.6 Nm

Specifications

Height: 28 mm

Approvals - Standards

Certificates: BG | cULus | IPA
