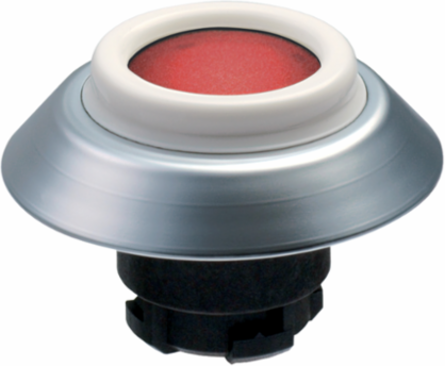

Schmersal 101163544 Illuminated Pushbutton Switch - 22.3 mm Mounting Diameter, IP67/IP69K, 1,000,000 Ops
- MPN: 101163544
- PPN: SCM-101163544
CAD
$38.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Illuminated Pushbutton Switch - 22.3 mm Mounting Diameter, IP67/IP69K, 1,000,000 Ops
Documentation & Downloads
Specifications
Key Specifications
- Height
- 28 mm
Electrical data
- Switching frequency
- 1,000 /h
Number of contact elements, maximum2
Mechanical data - Dimensions
- Height
- 28 mm
- Diameter of touch surface
- 27 mm
- Mounting diameter
- 22.3 mm
- Thickness of the front panel, maximum
- 6 mm
Diameter total44.5 mm
Diameter of the front ring44.5 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 50 mm
General data - Features
- Illuminable
- Yes
- Probing possible
- Yes
Mounting flangeYes
Fully insulatedYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Tactile
- Sealing type
- Membrane | Lip gaskets
- Material of the front ring
- ABS, chrome-plated
- Colour of the front ring
- Silver
- Gross weight
- 40 g
VersionsIlluminated pushbutton
Installation conditions (mechanical)arbitrarily
Material of the operatorsABS
Colour of the operating elementRed
Colour of the bellowsWhite
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Restistance to shock
- 30 g / 18 ms
Ambient temperature-25 ... +80 °C
Mechanical data
- Unlocking
- without
- Actuating stroke
- 5 mm
- Mounting
- Mounting flange ELM
Mechanical life, minimum1,000,000 Operations
Actuating force, approx.1.5 N
Tightening torque of the screw0.6 Nm
Approvals - Standards
- Certificates
- BG | cULus | IPA
