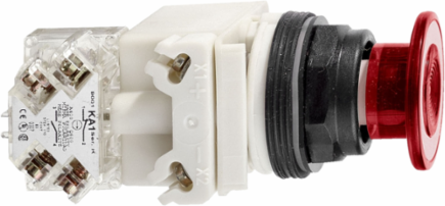

Schneider Electric 9001SKR9P38LRR Illuminated Push-Button Head 30 mm, Red Mushroom 41 mm, LED, 120V
- MPN: 9001SKR9P38LRR
- UPC: 785901176794
- PPN: SCH-9001SKR9P38LRR
CAD
$313.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This illuminated push-button head from Schneider Electric is designed to enhance operational efficiency and user interaction in various automation and control settings. Featuring a striking red mushroom design with a diameter of 41 mm, the button not only stands out but also provides ease of use, ensuring quick and reliable operation. With integrated LED lighting and a power requirement of 120V, it offers clear visual feedback, making it an essential component for any control panel or machinery interface where visibility and responsiveness are critical. Perfectly suited for a wide range of applications, this push-button head effectively combines functionality with robust design principles.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Mexico, United States, ZZ |
|---|
Physical Attributes
| Size | 30 mm |
|---|
| Light Source Color | red |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Light Source | LED, incandescent |
| Type Of Operator | push-pull, stay put |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0140406043, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0221734633, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.2 kg CO2 eq., 0.2393733333 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Bulb Base | BA 9s |
| Contacts Type And Composition | without contact block |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Mechanical Durability | 5000000 cycles |
| Operating Position | any position |
| Operator Position Information | 2 positions |
| Product Or Component Type | head for illuminated push-button |
| Range Of Product | Harmony 9001SK |
| Shape Of Signaling Unit Head | round |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 1 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Pep Code | ENVPEP2503027EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| [Us] Rated Supply Voltage | 120 V120 V AC/DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operator Profile | mushroom Ø 41 mm, red mushroom Ø 41 mm, unmarked |
| Certificate Agency | NEMA, UL 508 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0903676381 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.7 kg CO2 eq., 0.7014514718 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2503027EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Bezel Material | plastic |
| Compatibility Code | 9001SK |
| Device Short Name | 9001SK |
| Light Block Supply | direct |
| Mounting Diameter | 30 mm |
| Operator Additional Information | screw-on plastic |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Sustainable Packaging | Yes |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Light Source Color | red |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The 9001 K metal 30mm push buttons are automatic self grounding operators requiring no additional wiring and are ABS Certified. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments and it is robust and offers long term reliability in heavy duty industrial applications and extreme environments |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; BR / Electricity Mix; Production mix; Low voltage; APAC |
| Recyclability Potential In % | 15 |
| Cap/Operator Or Lens Colour | red |
| Package Weight(Lbs) | 104.326 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Ip Degree Of Protection | IP66 IEC 60529, IP65/IP66 |
| Take Back | No |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2503027EN |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503027EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Nema Degree Of Protection | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 1.0674065108 |
| Environmental Disclosure | ENVPEP2503027EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | head for illuminated push-button |
|---|
| Range Of Product | Harmony 9001SK |
|---|
ETIM
| ETIM 8 | EC001028 |
|---|
| ETIM 9 | EC001028 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
