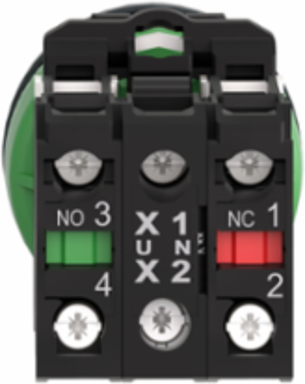

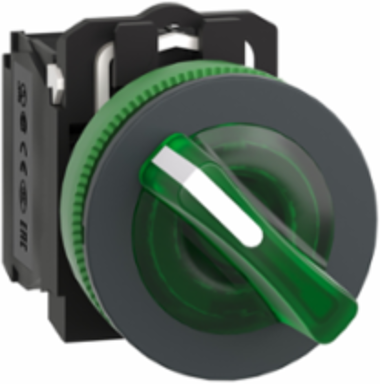

Schneider Electric XB5FK123M5 Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC
- MPN: XB5FK123M5
- PPN: SCH-XB5FK123M5
CAD
$181.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Illuminated selector switch, Harmony XB5, grey plastic, green handle, 30mm, universal LED, 2 positions, 1NO + 1NC, 230...240V AC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United States
Depth71 mm
Physical Attributes
- Cap Operator Or Lens Color
- green, green
Complementary Attributes
- Ie Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Ui Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Us Rated Supply Voltage230...240 V, 230...240 V AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage6 kV IEC 60947-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Bezel Material
- dark grey plastic, dark grey plastic
- Contacts Material
- silver alloy (Ag/Ni)
- Customizable
- no, 1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Mounting Diameter
- 30.5 mm
- Product Or Component Type
- illuminated selector switch
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Terminals Description Iso N 1
- (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO
- Type Of Operator
- stay put
- Connections Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0078459462, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0154975333
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.1 kg CO2 eq., 0.0758899083
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bulb Base
- integral LED
- Contacts Type And Composition
- 1 NO + 1 NC
- Electrical Shock Protection Class
- class II conforming to IEC 60536
- Head Type
- built-in-flush
- Mechanical Durability
- 1000000 cycles
- Positive Opening
- with NC contact IEC 60947-5-1 appendix K
- Product Repair Index
- A
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Product Repair Index Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty In Months
- 18
- Pep Code
- ENVPEP2308010EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
- Height Nominal
- 42 mm
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Contact Operationslow-break
Contacts Usagestandard contacts
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Light Sourceuniversal LED
Operator Profilegreen standard handle, unmarked
Protective TreatmentTH
Shape Of Signaling Unit Headround
Supply Voltage230...240 V
Tightening Torque0.8-1.2 N.m IEC 60947-1
Cap Operator Or Lens Colorgreen, green
Ie Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1249930187, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.5 kg CO2 eq., 0.4561947315
Certificate AgencyUL Listed, CSA
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308010EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB5
Device Short NameXB5F
Gcr BridgeXB5FKCUST03
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Operator Position Information2 positions 90°
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XB5
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Supply Voltage Limits195-264 V AC
Total Lifecycle Carbon Footprint0.7 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ith Conventional Free Air Thermal Current10 A IEC 60947-5-1
Operator Pos Information2 positions 90°
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %33
Width Nominal36.6 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.6804211379
- Environmental Disclosure
- ENVPEP2308010EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308010EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2308010EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- illuminated selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
