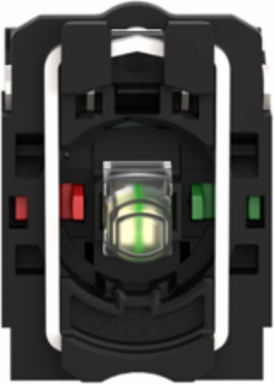

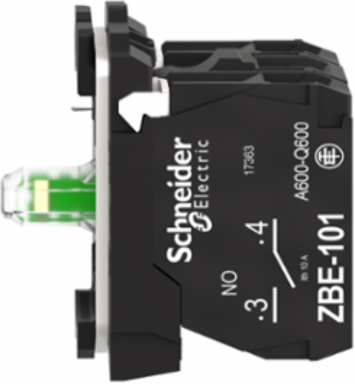

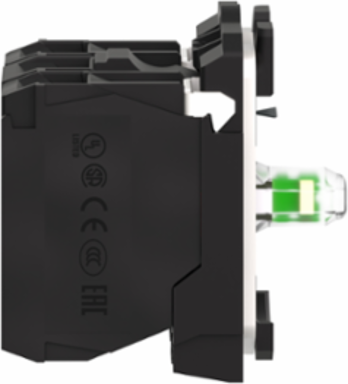

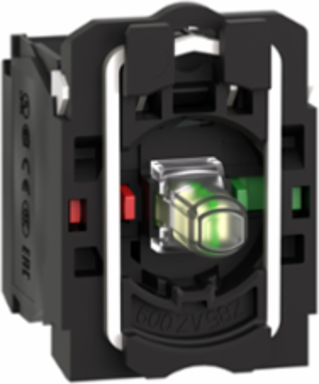

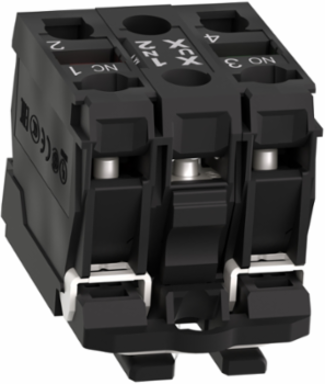

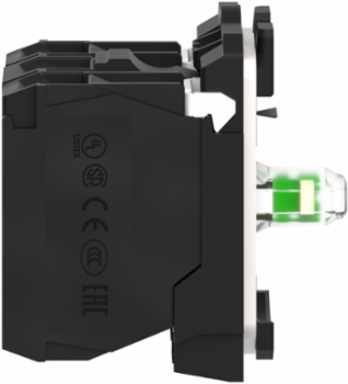

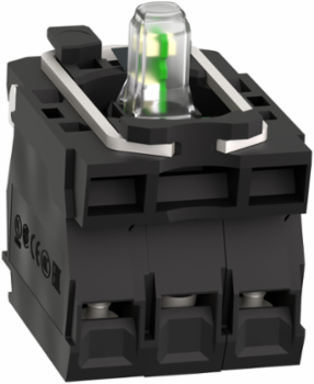

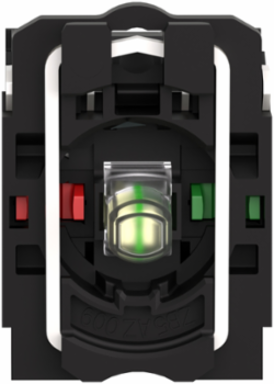

Schneider Electric ZB5AW0M15 Harmony XB5 Contact Assembly & Light Block, 230-240V, 1NO + 1NC, LED
- MPN: ZB5AW0M15
- PPN: SCH-ZB5AW0M15
- UNSPSC: 39122216
CAD
$92.94
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 32 g |
|---|
Physical Attributes

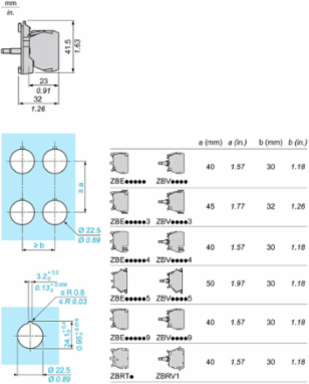

| Cad Overall Depth | 32 mm |
|---|---|
| Cad Overall Width | 30 mm |
| Cad Overall Height | 42 mm |
|---|
Complementary Attributes
| Ie Rated Operational Current | 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1 |
|---|---|
| Ui Rated Insulation Voltage | 600 V 3)IEC 60947-1 |
| Us Rated Supply Voltage | 230...240 V, 230...240 V AC 50/60 Hz |
|---|---|
| Uimp Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Customizable | 0, no |
| Electrical Reliability | λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4 |
| Shape Of Screw Head | cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm |
| Certificate Agency | CSA, DNV, BV, LROS (Lloyds register of shipping), UL Listed |
| Carbon Footprint Of The Distribution Phase A4 | 0.009224099821746882, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0088698752228164, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 54 kg CO2 eq., 54.35020672421627 |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2404014EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Average Percentage Of Recycled Metal Content | 29 % |
| Bulb Base | integral LED |
| Contact Operation | slow-break |
| Contacts Type And Composition | 1 NO + 1 NC |
| Current Consumption | 14 mA |
| Electrical Shock Protection Class | class II conforming to IEC 60536 |
| Fixing Collar Material | plastic |
| Light Block Supply | direct |
| Operating Force | 2 N NC changing electrical state2.3 N NO changing electrical state |
| Operating Travel | 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel) |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TH |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Sale Per Indivisible Quantity | 1 |
| Shock Resistance | 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 55 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Connections Terminals | screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1 |
| Database Version | 2022-01 |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 10 A IEC 60947-5-1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Pep End Of Validity Date Calculated | 2029-06-09 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C |
| Light Source | universal LED, universal LED |
| Contacts Composition | 1 NO + 1 NC |

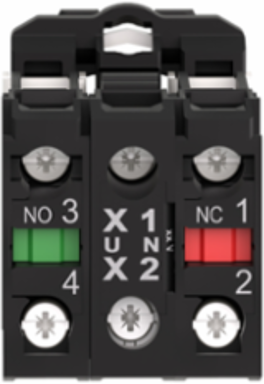

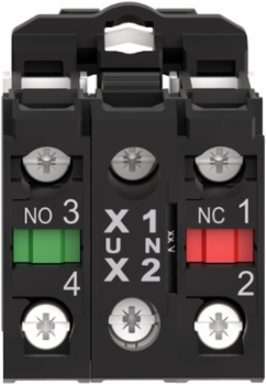

| Terminals Description Iso N°1 | (11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.07397076648841354 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.2 kg CO2 eq., 0.22305882352941178 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 16 % |
| Compatibility Code | ZB5 |
| Contacts Material | silver alloy (Ag/Ni) |
| Contacts Usage | standard |
| Device Short Name | ZB5 |
| Electromagnetic Emission | class B IEC 55011 |
| Head Type | standard |
| Mechanical Durability | 5000000 cycles |
| Operating Torque | 0.05 N.m NO changing electrical state |
| Positive Opening | with IEC 60947-5-1 appendix K |
| Product Or Component Type | complete body/contact assembly and light block |
| Range Of Product | Harmony XB5 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) IEC 61000-2-68 kV in free air (in insulating parts) IEC 61000-2-6 |
| Returnability | Yes |
| Service Life | 100000 h at rated voltage and 25 °C |
| Signalling Type | steady |
| Supply Voltage Limits | 195-264 V AC |
| Tightening Torque | 0.8-1.2 N.m IEC 60947-1 |
| Vibration Resistance | 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Light Source Color | white |
| Supply Voltage 20 Supply Voltage | 230...240 V |
| Data Source | extrapolated product |
| Customs Code | 8536509035 |
| Short Circuit Protection | 10 A cartridge fuse gG IEC 60947-5-1 |
| Functional Unit Description | Harmony XB5 illuminated modular green pushbutton operates with a spring return mechanism is supplied with 24V AC/DC which uses an integral LED and screw clamp terminals. It is clearly distinguishable visually at a distance with help of bright and long lasting LED illumination. Product has power consumption of 0.434 W with use rate of 71% with life span of 10 years and adhering to international standards IEC 60947-5-1 & UL 508. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 38 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 54.665330289278664 |
| Environmental Disclosure | ENVPEP2404014EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 29 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2404014EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2404014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | complete body/contact assembly and light block |
|---|
| Range Of Product | Harmony XB5 |
|---|
ETIM
| ETIM 8 | EC000204 |
|---|---|
| ETIM 10 | EC000204 |
| ETIM 9 | EC000204 |
|---|
Surge Protection And Filtering Attributes
| Surge Withstand | 1 kV IEC 61000-4-5 |
|---|
Overview Attributes
| Device Presentation | basic sub-assemblies |
|---|
