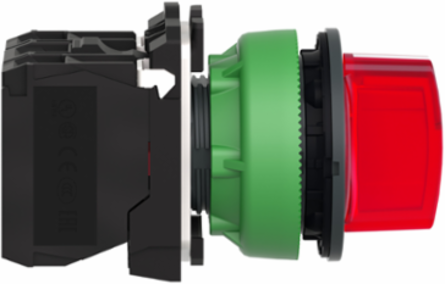

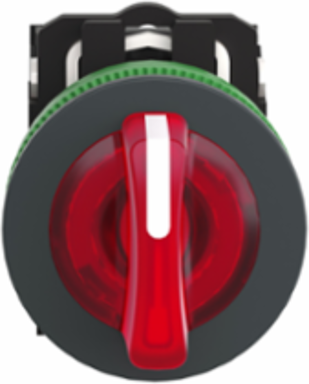

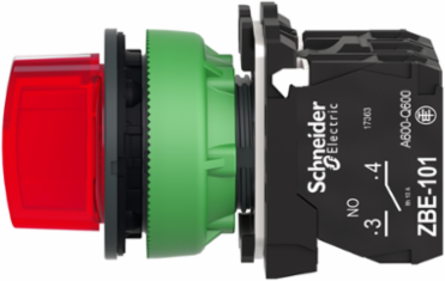

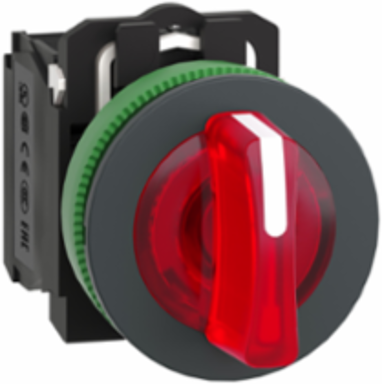

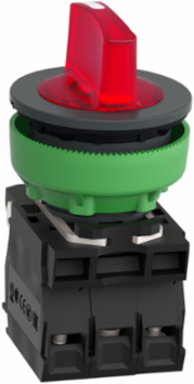

Schneider Electric XB5FK134B5 Illuminated Selector Switch, 30mm, 24V AC DC, 3 Positions, 1NO + 1NC
Schneider Electric XB5FK134B5 Illuminated Selector Switch, 30mm, 24V AC DC, 3 Positions, 1NO + 1NC
- MPN: XB5FK134B5
- PPN: SCH-XB5FK134B5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$138.62/ EA
Description
This flush mounted illuminated selector switch is a part of the Harmony XB54 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. The source of light is an integral LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a red standard handle with 3 positions ± 45 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 151 grams, height is 53 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13, and 4X, IK03, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Specifications
Environment
- Product Certifications
- UL listed || CSA
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Protective Treatment
- TH
Ik Degree Of ProtectionIK03 conforming to IEC 50102
StandardsIEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 60536
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
Complementary
- Contacts Usage
- standard contacts

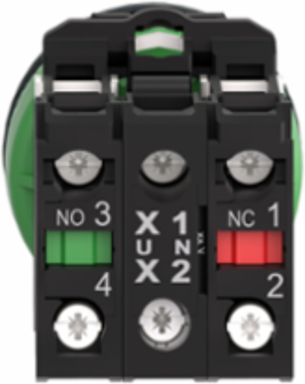

- Terminals Description Iso N°1
- (21-22)NC || (13-14)NO
- Contacts Material
- silver alloy (Ag/Ni)
- Positive Opening
- with NC contact IEC 60947-5-1 appendix K
- Net Weight
- 0.057 kg
- Device Presentation
- complete product
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Mechanical Durability
- 500000 cycles
- Width
- 36.6 mm
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
Height42 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Light Sourceuniversal LED
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Supply Voltage Limits21.6-26.4 V AC
Electrical Reliabilityλ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Depth71 mm
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Operator Position Information
- 3 positions +/- 45°
- [Us] Rated Supply Voltage
- 24 V AC/DC 50/60 Hz
Mounting Diameter30.5 mm
Product Or Component Typeilluminated selector switch
Head Typebuilt-in-flush
Contacts Type And Composition1 NO + 1 NC
Bezel Materialdark grey plastic
Operator Profilered standard handle, unmarked
Device Short NameXB5F
Bulb Baseintegral LED
