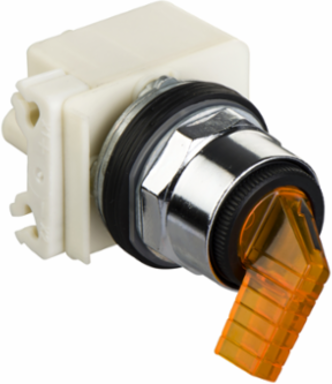

Illuminated Selector Switch, 30mm Amber Long Handle, LED Yellow
Schneider Electric

Schneider Electric 9001K11J35LYFA Illuminated Selector Switch, 30mm Amber Long Handle, LED Yellow

  • MPN: 9001K11J35LYFA
  • UPC: 047569000034
  • PPN: SCH-9001K11J35LYFA
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $321.71

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Harmony 9001K, modular illuminated amber selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Mexico, United States

    Physical Attributes

    Size
    30 mm
    Light Source Coloryellow

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Operator Profile
    long handle, amber long handle
    [Us] Rated Supply Voltage
    24...28 V, 24 V AC/DC
    Local Publishable Date
    2026-01-20
    Stocking Flag
    Y
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2503027EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Bezel Material
    metal
    Cam Profile
    5
    Contacts Type And Composition
    without contact block
    Electrical Shock Protection Class
    class II conforming to IEC 61140
    Light Source
    LED
    Mounting Diameter
    30 mm
    Product Availability
    Stock - Normally stocked in distribution facility
    Protective Treatment
    TC
    Returnability
    No
    Shock Resistance
    50 gn IEC 60068-2-27
    Type Of Operator
    stay put
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP2503027EN
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyUL 508, NEMA
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label7
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Bulb BaseBA 9s
    Compatibility Code9001K
    Device Short Name9001K
    Light Block Supplydirect
    Mechanical Durability0.5 Mcycles
    Operator Position Information2 positions
    Product Or Component Typehead for illuminated selector switch
    Range Of ProductHarmony 9001K
    Shape Of Signaling Unit Headoctagonal
    Sustainable PackagingYes
    Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    Light Source Coloryellow
    Cap/Operator Or Lens Colouramber
    Package Weight(Lbs)249.476 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -25-70 °C, -25-70 °C
    Ip Degree Of Protection
    IP66 IEC 60529, IP65/IP66
    Take Back
    No
    China Rohs Regulation
    X
    Circularity Profile
    ENVEOLI2503027EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP2503027EN
    Packaging Made With Recycled CardboardYes
    Product Compatibility9001KA2 side 1 or 2
    Pep CodeENVPEP2503027EN

    General Attributes

    Product Or Component Type
    head for illuminated selector switch
    Range Of ProductHarmony 9001K

    ETIM

    ETIM 8
    EC001029
    ETIM 9EC001029

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Overview Attributes

    Device Presentation
    basic element
