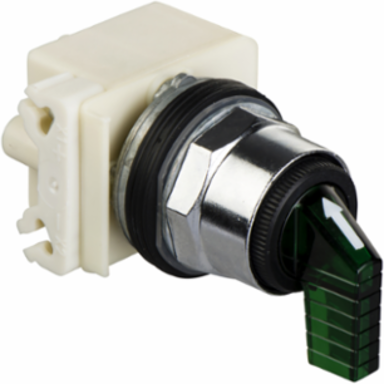

Schneider Electric 9001K11J35LGFG Illuminated Selector Switch Head, 30mm, Green, Long Handle, LED 24-28V
- MPN: 9001K11J35LGFG
- UPC: 785901934097
- PPN: SCH-9001K11J35LGFG
CAD
$321.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony 9001K, modular illuminated green selector switch with long handle has 2 positions and operates with a stay-put mechanism. It has a chromium-plated metal bezel, is supplied with a 24V AC/DC integral LED and is supplied with a E cam. This illuminated selector switch with integral LED and long handle provides a versatile and highly visible interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Type Of Operator
- stay put
- Device Short Name
- 9001K
Operator Profilegreen long handle
Product Or Component Typehead for illuminated selector switch
Complementary
- [Us] Rated Supply Voltage
- 24...28 V
- Contacts Type And Composition
- without contact block
- Bezel Material
- metal
- Product Compatibility
- 9001KA2 side 1 or 2
- Operator Position Information
- 2 positions
- Light Block Supply
- direct
- Operator Profile
- long handle
- Light Block Colour
- green
- Cap/Operator Or Lens Colour
- green
- Size
- 30 mm
- Device Presentation
- basic element
[Us] Rated Supply Voltage24 V AC/DC
Light SourceLED
Cam Profile5
Light Source Colourgreen
Mechanical Durability500000 cycles
Mounting Diameter30 mm
Type Of Operatorstay put
Shape Of Signaling Unit Headoctagonal
Net Weight0.245 kg
Bulb BaseBA 9s
Environment
- Product Certifications
- UL 508 || NEMA
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4
- Shock Resistance
- 50 gn IEC 60068-2-27
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
StandardsUL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || JIS C 4520 || CSA C22.2 No 14 || EN/IEC 60947-1 || JIS C 852
Electrical Shock Protection Classclass II IEC 61140
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
