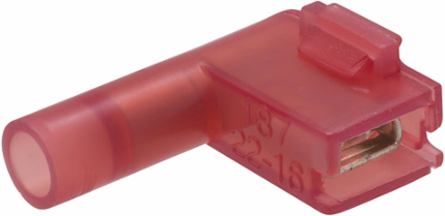

ILSCO NFLBD-18-187-P25 ILSCON Disconnect Terminal, Conductor Range 18-22, Flag, Double Crimp, Nylon Insulated, Red Color Code, 0.187 x .020in Tab Size, Pack of 25
- MPN: NFLBD-18-187-P25
- UPC: 783669207606
- PPN: ILC-NFLBD-18-187-P25
CAD
$29.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ILSCON Disconnect Terminal, Conductor Range 18-22, Flag, Double Crimp, Nylon Insulated, Red Color Code, 0.187 x .020in Tab Size, Pack of 25
Documentation & Downloads
Specifications
Key Specifications
| Height | 2.88 in |
|---|---|
| Weight | 0.1453 lbs |
| Length | 3.5 in |
|---|---|
| Width | 1.21 in |
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Height BX (IN) | 7.75 |
|---|---|
| Weight BX (LB) | 8.7176 |
| Maximum Wire Insulation Diameter (IN) | 0.157 |
|---|---|
| Width BX (IN) | 9.5 |
Testing Standards
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| UL / CULUS Specification | UL/cUL 310 Listed |
| UL Control Number | 19X5 |
|---|---|
| UL File Number | E474613 |
Additional Class Attributes
| Conductor Entry | Funnel wire |
|---|---|
| Construction Type | Brazed |
| ILSCOs Die Index Number | A |
| Installing Dies | Die Set B |
| Insulation Grip | Yes |
| Connection | Compression |
|---|---|
| End Connection | Female |
| Installation Tooling | ILST-22K |
| Insulation Flared End | Yes |
| Tongue Type | Flag Disconnect |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Fully Insulated | Yes |
| Material | Brass |
| Connector Finish | Tin |
|---|---|
| Insulation | Nylon |
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 18 Sol - 22 Sol |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 18 Str - 22 Str |
|---|
General
| Bag Quantity | 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366920760 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| NEMA Code | S-588-3 |
Color
| Color | Red, Silver |
|---|
Environment and Temperature
| Halogen Free | Yes |
|---|
| Temperature Rating | 105°C |
|---|
