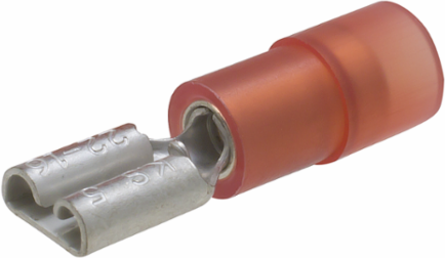

ILSCO NFLBD-18-250-P25 ILSCON Disconnect Terminal, Conductor Range 18-22, Flag, Double Crimp, Nylon Insulated, Red Color Code, 0.250 x .032in Tab Size, Pack of 25
- MPN: NFLBD-18-250-P25
- UPC: 783669207613
- PPN: ILC-NFLBD-18-250-P25
CAD
$32.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ILSCON Disconnect Terminal, Conductor Range 18-22, Flag, Double Crimp, Nylon Insulated, Red Color Code, 0.250 x .032in Tab Size, Pack of 25
Documentation & Downloads
Specifications
Key Specifications
- Height
- 2.88 in
- Weight
- 0.1651 lbs
Length3.5 in
Width1.21 in
Voltage
- Voltage Rating
- 600 V
Dimensions
- Height BX (IN)
- 7.75
- Weight BX (LB)
- 9.9056
Maximum Wire Insulation Diameter (IN)0.157
Width BX (IN)9.5
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 310 Listed
UL Control Number19X5
UL File NumberE474613
Additional Class Attributes
- Conductor Entry
- Funnel wire
- Construction Type
- Brazed
- ILSCOs Die Index Number
- A
- Installing Dies
- Die Set B
- Insulation Grip
- Yes
ConnectionCompression
End ConnectionFemale
Installation ToolingILST-22K
Insulation Flared EndYes
Tongue TypeFlag Disconnect
Material and Finish
- Conductor Material
- Copper
- Fully Insulated
- Yes
- Material
- Brass
Connector FinishTin
InsulationNylon
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 18 Sol - 22 Sol
Conductor Range CU Stranded (Primary, run, main, line)18 Str - 22 Str
General
- Bag Quantity
- 25
- Dual Rated
- No
- UPC Code
- 78366920761
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Color
- Color
- Red, Silver
Environment and Temperature
- Halogen Free
- Yes
Temperature Rating105°C
