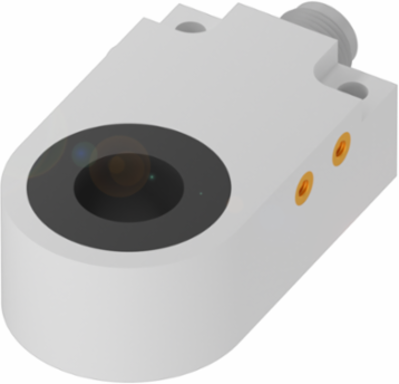

Balluff BES IKVS-015.23-G-S4 Inductive Ring Sensor, M12x1 4-Pin Connector, IP65, 60x35x20 mm
- MPN: BES IKVS-015.23-G-S4
- PPN: BAL-BES03JC
CAD
$594.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Inductive Ring Sensor, M12x1 4-Pin Connector, IP65, 60x35x20 mm
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 10...30 VDC
- Switching Output
- PNP Normally open (NO)
- Ambient Temperature Range
- -25...70 °C
- Dimensions
- 60 x 35 x 20 mm
- Connection
- Connector, M12x1-Male, 4-pin
- Housing Material
- Plastic
- Ingress Rating
- IP65
- Sensor Type
- Inductive Ring Sensor
Switching Frequency16 Hz
Pass-Through Distance15.1 mm
Target Size MinimumBall D = 3 mm
Thread SizeM12x1
Material Sensing SurfacePlastic
StyleBlock style
Approval/ConformityCE; WEEE
Country of OriginGermany
