Balluff

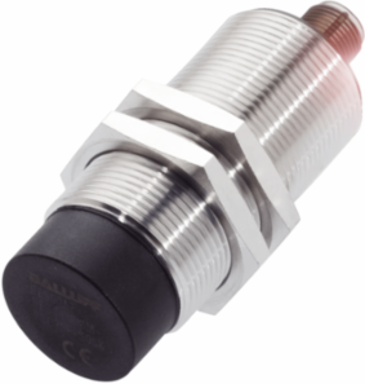

Balluff BES M30MM-POC30F-S04K Inductive standard sensors with preferred types BES M30MM-POC30F-S04K

  • MPN: BES M30MM-POC30F-S04K
  • PPN: BAL-BES00AU

CAD

$87.49

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

DimensionØ 30 x 83 mm
Installationnon-flush
Switching outputPNP Normally closed (NC)
Housing materialBrass
Material sensing surfacePBT
Operating voltage Ub10-30 VDC
IP ratingIP67
StyleM30x1.5
Range30 mm
Switching frequency300 Hz
Surface protectionNickel-free coated
ConnectionConnector, M12x1-Male, 4-pin
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
Inductive standard sensors with preferred types BES M30MM-POC30F-S04K
