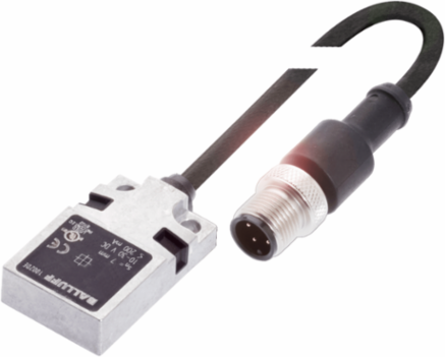

Balluff BES R01ZC-PAC70B-BP00.2-GS04 Inductive Sensor 32x20x8 mm, 10-30 VDC, IP67, PNP NO/NC
Balluff BES R01ZC-PAC70B-BP00.2-GS04 Inductive Sensor 32x20x8 mm, 10-30 VDC, IP67, PNP NO/NC
- MPN: BES R01ZC-PAC70B-BP00.2-GS04
- PPN: BAL-BES01W2
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$220.57/ EA
Description
Inductive standard sensors from Balluff are engineered to deliver reliable performance in various automation and control applications. With an operating voltage range of 10-30 VDC and a robust design featuring a die-cast zinc housing, these sensors are built to withstand challenging environments, boasting an IP67 rating for dust and water resistance. Their compact dimensions of 32 x 20 x 8 mm make them ideal for flush mounting, while the ability to operate in ambient temperatures from -25 to 70 °C ensures versatility across a range of conditions. With a switching frequency of 150 Hz and a sensing range of 7 mm, these sensors provide precise detection capabilities, making them an excellent choice for industrial applications.
Specifications
- Operating Voltage
- 10-30 VDC
- Switching Output
- PNP NO/NC (normally open/normally closed)
- Ambient Temperature Range
- -25 to 70 C
- Connection
- Cable with connector, M12x1 male, 4-pin, 0.20 m PUR jacket
- Material Sensing Surface
- PA 12
- Installation
- for flush mounting
Rated Operating Distance7 mm
Switching Frequency150 Hz
Dimension32 x 20 x 8 mm
Housing MaterialZinc, Die casting
IP RatingIP67
Approval/ConformityCE, cULus, EAC, WEEE
