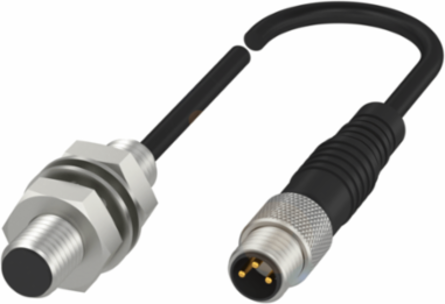

Inductive standard sensors with preferred types BES 516-324-G-E4-C-S49-00,3
Balluff

Balluff BES 516-324-G-E4-C-S49-00,3 Inductive standard sensors with preferred types BES 516-324-G-E4-C-S49-00,3

  • MPN: BES 516-324-G-E4-C-S49-00,3
  • PPN: BAL-BES00P4

CAD

$192.75

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Additional

Operating Voltage
10-30 V DC
Switching Frequency
5000 Hz
Dimension
Ø 8 x 30 mm
Installation
Flush mounting
Housing Material
Stainless steel
Ambient Temperature
-40 to 85 C
Approval/Conformity
CE, EAC, cULus, WEEE
Range2 mm
Switching OutputPNP Normally open (NO)
SizeM8x1
ConnectionCable with connector, M8x1-Male, 3-pin, 0.3 m, PUR
Material Sensing SurfacePBT
IP RatingIP68
