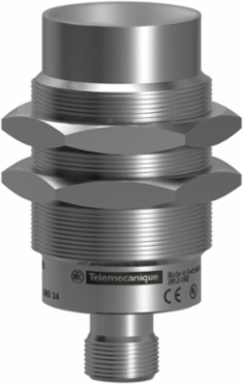

Telemecanique Sensors XS930R4PAM12 Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 303, Sn40 mm, 12...24 VDC, M12
Telemecanique Sensors XS930R4PAM12 Inductive proximity sensors XS, inductive sensor XS9 M30, L64mm, full SS 303, Sn40 mm, 12...24 VDC, M12
- MPN: XS930R4PAM12
- PPN: TES-XS930R4PAM12
- UNSPSC: 39122230
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$299.08/ EA
Description
The XS range is an offer of inductive proximity sensors for the detection of metal objects up to 60mm without physical contact. The oscillator produces an alternating electromagnetic field that exits the detection area of the sensor. Any metallic object penetrating this field is then detected. This threaded cylindrical (M30) inductive proximity sensor is designed for harsh environments. It is made of stainless steel 303 and it is non flush mountable. Its nominal sensing distance is 40mm, it supports 1 normally open PNP discrete output and it has a switching frequency of 90Hz. It works in a temperature range of -25°C and +70°C, it is dustproof, waterproof (IP68), and withstands high pressure and steam cleaning (IP69K). It is made of stainless steel 303. It measures 30mm (length) x 30mm (diameter) and weighs 0.144kg. This inductive proximity sensor is designed to be used in harsh environments. This sensor is certified cULus. The main advantage of the inductive detection offered by the sensors of the XS range is that there is no physical contact with the object to be detected.
Specifications
Environment
- Product Certifications
- cULus
- Vibration Resistance
- 25 gn +/- 1 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance30 gn 11 msIEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Current Consumption
- <= 10 mA no-load
- Maximum Delay Response
- 6E-05 ms
- Repeat Accuracy
- <= 5 % of Sr
- Maximum Voltage Drop
- <2 V closed)
- Marking
- CE
- Material
- stainless steel 303
- Maximum Residual Current
- 0.1 mA open state
- Thread Type
- M30 x 1.5
- Differential Travel
- 1...15 % of Sr
- Maximum Delay First Up
- 40 ms
- Detector Flush Mounting Acceptance
- non flush mountable
- Front Material
- stainless steel 303
Height30 mm
Status Ledoutput state 1 LED yellow)
Operating Zone0-32 mm
Threaded Length32 mm
Length64 mm
Net Weight0.144 kg
Switching Frequency<= 90 Hz
Sensing Range> 0.59...1.57 in (> 15...40 mm)
Maximum Delay Recovery0.015 ms
Supply Voltage Limits10-30 V DC
Detection Facefrontal
Output Circuit TypeDC
Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS9
- Wiring Technique
- 3-wire
- Series Name
- Application
- [Sn] Nominal Sensing Distance
- 40 mm
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Enclosure Material
- stainless steel 303
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Size64 mm
Ip Degree Of ProtectionIP69K conforming to DIN 40050 || IP68 conforming to IEC 60529
Body Typesingle piece body
Sensor Typeinductive proximity sensor
Sensor Designcylindrical M30
Device Applicationharsh environment application
