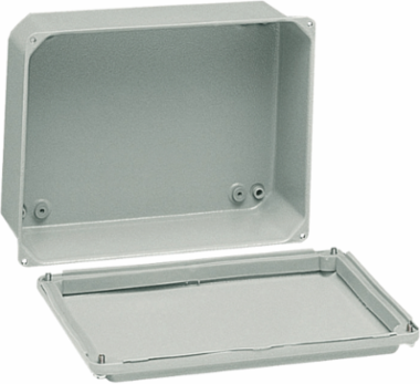

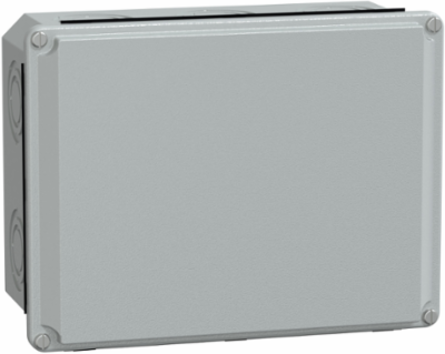

Schneider Electric NSYDB2015M Metal Junction Box 206mm H x 156mm W x 83mm D, IP55, Steel, Low Cover
Schneider Electric NSYDB2015M Metal Junction Box 206mm H x 156mm W x 83mm D, IP55, Steel, Low Cover
- MPN: NSYDB2015M
- PPN: SCH-NSYDB2015M
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$19.95/ EA
Description
This robust metal industrial cut-out box, designed by Schneider Electric, is an ideal solution for various multi-purpose applications. With its dimensions of 206 mm in height, 156 mm in width, and a depth of 83 mm, this enclosure offers a practical and secure space for electrical connections. Rated IP55 for protection against dust and water ingress, along with an IK07 impact rating, it ensures durability and reliability in demanding environments. Constructed from high-quality steel and finished with an epoxy-polyester powder coating, this light gray junction box not only meets industry standards but also provides a sleek appearance for wall-mounted installations. Weighing just over a kilogram, it is easy to handle while maintaining a strong and sturdy design suitable for a variety of cable entry configurations.
Features
- Back ready for threaded drill holes for fixing equipment
- Holes heightened for internal fixation of accessories
- With knock-outs
- Maximal space inside
- Ingress protection IP55
Specifications
Physical Attributes
- Color
- Light gray RAL 7035)
- Enclosure Nominal Width
- 156 mm
Enclosure Nominal Height206 mm
Conformance Attributes
- Standards
- IEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover, 1 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 2 kg CO2 eq., 2.4909982686196592
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.817987603726139
- Cable Entry Number
- 5 20.5 mm M20), 5 25.5 mm M25), 5 32.5 mm M32), 5 40.5 mm M40)
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- multi-purpose
- Enclosure Type
- empty enclosure
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Returnability
- No
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Stocking Flag
- Y
- Pep Code
- ENVPEP1210023EN
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- Unit
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A42.0309851053365144, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.12608806841741738, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Cover Fixingscrew
Enclosure Mountingwall mounted
Energy Efficiency OptimizedFalse
Package Weight Lbs1.023 kg
Product Or Component Typejunction box
Range Of ProductPanelSeT SDB
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint9 kg CO2 eq.
Medium DescMetal industrial cut-out box - low plain cover - H206xW156xD83 - IP55 - grey
Product Kit IdentifierN
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 9.46605904609973
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1210023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- junction box
Range Of ProductPanelSeT SDB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
