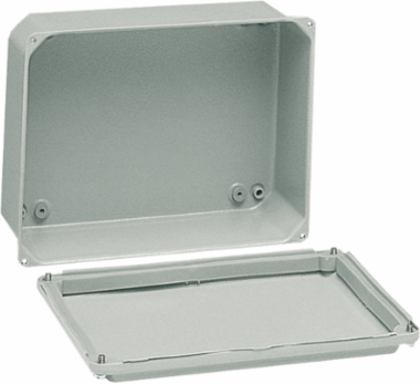

Schneider Electric NSYDB88M Metal Junction Box, 85mm x 85mm x 49mm, IP55, Low Plain Cover, Steel
- MPN: NSYDB88M
- PPN: SCH-NSYDB88M
CAD
$5.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for durability and functionality, this metal industrial cut-out box from Schneider Electric is an essential component for various electrical applications. With dimensions of 85mm x 85mm x 49mm and an IP55 rating, it provides excellent protection against dust and water, making it suitable for both indoor and outdoor installations. Constructed from robust steel and finished with an epoxy-polyester powder coating, this junction box is built to withstand the rigors of industrial environments while maintaining a sleek light gray appearance. The enclosure is wall-mounted and features a low plain cover secured by screws, ensuring easy access and secure closure. With a weight of just 0.191 kg, it is lightweight yet sturdy, making it an ideal choice for multi-purpose use in various settings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
Physical Attributes
- Color
- Light gray RAL 7035)
- Enclosure Nominal Width
- 85 mm
Enclosure Nominal Height85 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Cable Entry Number
- 1 20.5 mm M20), 1 25.5 mm M25)
- Carbon Footprint Of The Distribution Phase [A4]
- 0.3732406645193204, 0.4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.023171609836240926, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cover Fixing
- screw
- Enclosure Mounting
- wall mounted
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 2 kg CO2 eq.
- Pep Code
- ENVPEP1210023EN
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Certificate Agency
- IEC 62208
- Package Weight(Lbs)
- 188.000 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Device Composition1 body, 1 cover, 1 cover screw
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.45777876295258646
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.8854170767355954
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Enclosure Typeempty enclosure
Materialsteel
Product Or Component Typejunction box
Range Of ProductPanelSeT SDB
Software Versionv6.1
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential, In %96
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.7396081140437432
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1210023EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1210023EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- junction box
Range Of ProductPanelSeT SDB
ETIM
- ETIM 8
- EC002600
ETIM 9EC002600
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
