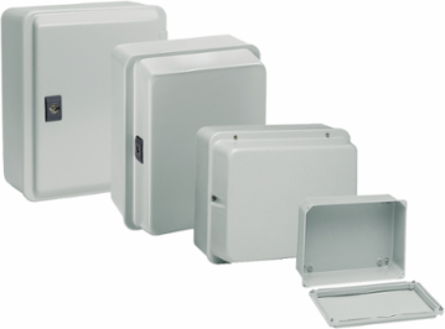

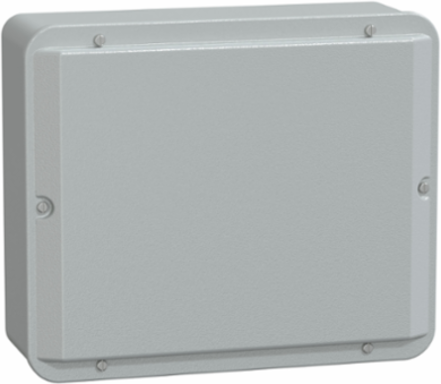

Schneider Electric NSYDBN3025 Metal Junction Box 307mm H x 257mm W x 116mm D, IP55, Steel
Schneider Electric NSYDBN3025 Metal Junction Box 307mm H x 257mm W x 116mm D, IP55, Steel
- MPN: NSYDBN3025
- PPN: SCH-NSYDBN3025
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$51.74/ EA
Description
Designed for durability and versatility, this metal industrial box from Schneider Electric is a robust solution for various applications. With dimensions of 307mm in height, 257mm in width, and 116mm in depth, this junction box is constructed from high-quality steel and features a low plain cover, ensuring reliable protection for your electrical components. Rated at IP55 for dust and water resistance and IK07 for impact protection, it is ideal for wall-mounted installations in challenging environments. The light gray finish (RAL 7035) not only adds to its aesthetic appeal but also complements a range of industrial settings. With an 18-month warranty, this enclosure is built to last while meeting the rigorous standards outlined in IEC 62208.
Features

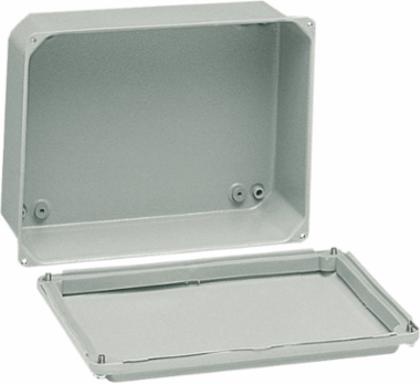

- Back ready for threaded drill holes for fixing equipment
- Holes heightened for internal fixation of accessories
- Without knock-outs
- Maximal space inside
- Ingress protection IP55
Specifications
Physical Attributes
- Color
- Light gray RAL 7035)
- Enclosure Nominal Width
- 257 mm
Enclosure Nominal Height307 mm
Conformance Attributes
- Standards
- IEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover, 1 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 9 kg CO2 eq., 8.634486667180168
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 17 kg CO2 eq., 16.700473160129903
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Cover Fixing
- screw
- Enclosure Mounting
- wall mounted
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 3.546 kg
- Product Or Component Type
- junction box
- Range Of Product
- PanelSeT SDB
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 33 kg CO2 eq.
- Medium Desc
- Metal industrial box - low plain cover - H307xW257xD116 - IP55 - grey RAL 7035
- Product Kit Identifier
- N
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- France, FR
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A47.0399542360931395, 7 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.43705600254952304, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-09-16
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Enclosure Typeempty enclosure
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Stocking FlagY
Pep CodeENVPEP1210023EN
Pep Verification Date2024-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 32.81197006595273
- IP Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1210023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- junction box
Range Of ProductPanelSeT SDB
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
