Schneider Electric

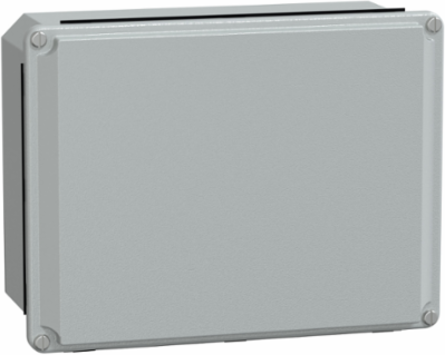

Schneider Electric NSYDBN2015 Metal Junction Box - 206 mm H x 156 mm W x 83 mm D - IP55 - Steel

  • MPN: NSYDBN2015
  • PPN: SCH-NSYDBN2015
  • UNSPSC: 39121324

CAD

$22.12

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Designed for durability and versatility, this metal industrial box from Schneider Electric is an essential solution for various applications. With its robust steel construction and an IP55 rating, it provides excellent protection against dust and water, making it suitable for challenging environments. The enclosure features a low plain cover secured by screws, ensuring reliable access while maintaining a sleek aesthetic in a light gray finish (RAL 7035). Measuring 206 mm in height, 156 mm in width, and 83 mm in depth, this wall-mounted junction box combines practicality with a compact design, making it an ideal choice for any electrical installation. With an 18-month warranty, it guarantees quality and performance for your projects.

Features

  • Back ready for threaded drill holes for fixing equipment
  • Holes heightened for internal fixation of accessories
  • Without knock-outs
  • Maximal space inside
  • Ingress protection IP55

Documentation & Downloads

Specifications

Key Specifications

Country of OriginIndia
Weight942 g

Physical Attributes

ColorLight gray RAL 7035)
Enclosure Nominal Width156 mm
Enclosure Nominal Height206 mm

Important Information Attributes

Persona Type IdsLC, OM, OM8, PB, SI
Market Segmentation IdCOMMERCIAL, INDUSTRIAL
Device Composition1 body, 1 cover, 1 cover screw
Carbon Footprint Of The End Of Life Phase C1 To C42 kg CO2 eq., 2.2937638016028536
Carbon Footprint Of The Manufacturing Phase A1 To A34 kg CO2 eq., 4.436504714281548
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cover Fixingscrew
Enclosure Mountingwall mounted
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint9 kg CO2 eq.
Database Version2023-02
Certificate AgencyIEC 62208
Customs Code7326908688
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y20
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.870173967963829, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.11610455566882423, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6kg CO2 eq., 0
Local Publishable Date2025-09-16
Service Catalog ItemFinished good
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationmulti-purpose
Enclosure Typeempty enclosure
Materialsteel
Product Or Component Typejunction box
Range Of ProductPanelSeT SDB
Software Versionv6.1
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Data Sourceextrapolated product
Nbr. Of Units In Pkg.1
Silicone FreeYes
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit UnitUnit
Recyclability Potential In %96

Environment Attributes Main

China Rohs RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Silicon FreeYes
Environmental DisclosureENVPEP1210023EN
Ip Degree Of ProtectionIP55 IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint8.716547039517053
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review

General Attributes

Product Or Component Typejunction box
Range Of ProductPanelSeT SDB

ETIM

ETIM 8EC002600
ETIM 10EC002600
ETIM 9EC002600

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months
Metal Junction Box - 206 mm H x 156 mm W x 83 mm D - IP55 - Steel
Metal Junction Box - 206 mm H x 156 mm W x 83 mm D - IP55 - Steel
