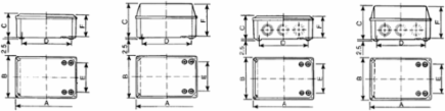

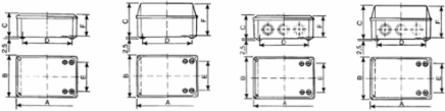

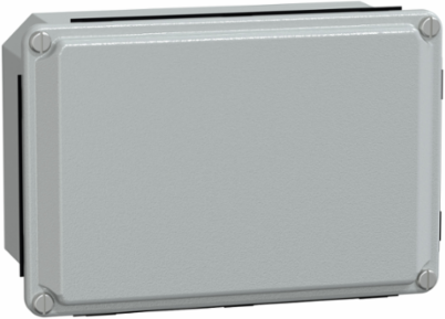

Schneider Electric NSYDBN1510 Metal Industrial Box - Low Plain Cover, H155 x W105 x D61 mm, IP55, Steel
- MPN: NSYDBN1510
- PPN: SCH-NSYDBN1510
CAD
$11.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for versatility and durability, this metal industrial box is an ideal solution for various junction box applications. With dimensions of 155 mm in height, 105 mm in width, and 61 mm in depth, it provides ample space for electrical components while ensuring a robust structure. Constructed from steel and finished with an epoxy-polyester powder coating, it not only meets the IP55 protection rating for dust and water resistance but also adheres to the IEC 62208 standards, making it suitable for demanding environments. This lightweight enclosure, weighing just 0.458 kg, features a low plain cover secured by screws, ensuring easy access while maintaining secure housing for your devices. Whether mounted on a wall or used in multi-purpose applications, this industrial box is designed to withstand the rigors of industrial use while offering a sleek, light gray aesthetic that blends seamlessly into any setting.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
Physical Attributes
- Color
- Light gray RAL 7035)
- Enclosure Nominal Width
- 105 mm
Enclosure Nominal Height155 mm
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 body, 1 cover, 1 cover screw
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 0.9837373416640689
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.9027047819211733
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Enclosure Type
- empty enclosure
- Material
- steel
- Product Or Component Type
- junction box
- Range Of Product
- PanelSeT SDB
- Software Version
- v6.1
- Sustainable Packaging
- No
- Type Of Front Cover
- low plain cover
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Recyclability Potential In %
- 96
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- Yes
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.8020703641798163, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.04979431049915604, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-16
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cover Fixingscrew
Enclosure Mountingwall mounted
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
ReturnabilityNo
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint4 kg CO2 eq.
Pep CodeENVPEP1210023EN
Pep Verification Date2024-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Certificate AgencyIEC 62208
Package Weight(Lbs)404.000 g
Take-backNo
Customs Code7326908688
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP1210023EN
- Ip Degree Of Protection
- IP55 IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint3.7383067982642144
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1210023EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- junction box
Range Of ProductPanelSeT SDB
ETIM
- ETIM 8
- EC002600
ETIM 9EC002600
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
