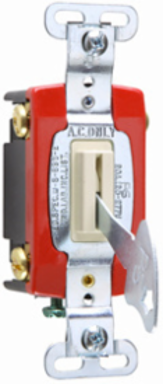

Pass & Seymour PS20AC4LAL Industrial Extra Heavy Duty Lock Switch 20A 120/277V, Light Almond
- MPN: PS20AC4LAL
- UPC: 785007266795
- PPN: P-S-PS20AC4LAL
CAD
$136.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial Extra Heavy Duty Lock Switch 20A 120/277V, Light Almond
Features
- External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
- Cam controls fast ''make'' and positive ''break'' to minimize arcing.
- Heavy-duty bumper pads for quiet operation.
- High strength thermoplastic polycarbonate toggle.
- Back body made of glass-reinforced nylon.
- Locking support provides resistance to face and back body separation.
- Oversized silver alloy contacts for long life and better heat dissipation.
- Grounding terminal is standard.
- Shallow design for ease of installation.
- Strap nickel-plated steel with integral ground.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 1.073 in |
|---|---|
| Height | 3.281 in |
| Width | 1.32 in |
| Country of Origin | Mexico |
| Amperage | 20.0 A |
| Voltage | 120 VAC |
| Standard | FEDSPEC |
| Number of Gangs | 1 |
| Load Type | Universal |
| Load Type | Fluorescent |
| Load Type | Incandescent |
| Number of Switches | 1.0 |
| Throw Type | Double Throw |
| Features | Chemical Resistant |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Application Sector | Industrial |
| Connection Location | Back and Side |
| Warranty Type | 1-Year Limited Warranty |
| Special Features | High strength toggle, heavy duty toggle bumpers, locking support |
| Type | Switch |
|---|---|
| Load Type | CFL |
| Load Type | LED |
| Standard | UL 20 |
| Load Type | Xenon |
| Voltage | 277 VAC |
| Load Type | Halogen |
| Switch Type | Toggle |
| Indoor/Outdoor | Indoor |
| Number of Poles | 4-Way |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Requires Neutral Wire | No |
| Color | Light Almond |
| Material | Thermoplastic |
| Application Sector | Commercial |
| Load Rating | 20 A @ 120/277 VAC |
| Wire Connection Type | Screw Terminals |
| Terminal Accommodation | #14 AWG - #10 AWG |
