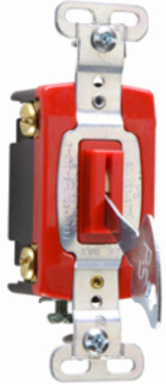

Pass & Seymour PS20AC4REDL Industrial Extra Heavy Duty Specification Grade Lock Switch Back and Side Wire, Red

Industrial Extra Heavy Duty Specification Grade Lock Switch Back and Side Wire, Red
  • MPN: PS20AC4REDL
  • UPC: 785007266832
  • PPN: P-S-PS20AC4REDL

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$129.56/ EA

Description

Industrial Extra Heavy Duty Specification Grade Lock Switch Back and Side Wire, Red

Features

  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of installation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.

Specifications

Specifications

Depth
1.073 in
Color
Red
Width
1.32 in
Material
Thermoplastic
Type
Switch
Load Type
LED
Amperage
20.0 A
Voltage
120 VAC
Standard
FEDSPEC
Number of Gangs
1
Load Type
Universal
Load Type
Fluorescent
Load Type
Incandescent
Number of Switches
1.0
Throw Type
Double Throw
Features
Chemical Resistant
Application Sector
Industrial
Connection Location
Back and Side
Warranty Type
1-Year Limited Warranty
Special Features
Heavy gauge once piece copper alloy contact, bumper pads for quiet operation, locking support
Height3.281 in
FinishMatte
Country of OriginMexico
Product LinePass & Seymour
Load TypeCFL
StandardUL 20
Load TypeXenon
Voltage277 VAC
Load TypeHalogen
Switch TypeToggle
Indoor/OutdoorIndoor
Number of Poles4-Way
Mounting TypeWall Box
Wall Plate IncludedNo
Requires Neutral WireNo
Application SectorCommercial
Load Rating20 A @ 120/277 VAC
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
