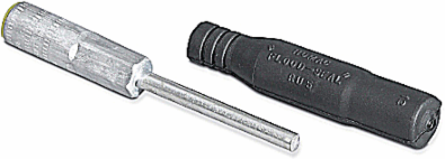

Blackburn RG 5 U 20 Flood-Seal Insulated Compression Pin Terminals, 2/0 Wire Size, Aluminum & Copper

MPN: RG 5 U 20
UPC: 783786745920
PPN: T-B-RG 5 U 20

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$105.25/ EA

Qty:

Loading add to cart quantity...

Description

Flood-Seal Insulated Compression Pin Terminals, conductor size 2/0 Aluminum Stranded, 2/0 ACSR, 1/0 Copper Solid pin, installing dies - 5/8-1,297,245,TW-TY,5/8 GOLD, length (P) 2-1/2 inch, length (B) 1-3/4 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Flood-Seal insulators ensure a watertight seal on the pin as well as around the Aluminum cable insertion. Also rated up to 600 V.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeFlood-Seal Insulated Compression Pin Terminals

ApplicationFor use on Aluminum Secondary Conductors Connected to Copper Clamp-Type Bushings.

Wire SizeAluminum Stranded 2/0, ACSR 2/0

Packaging

Outer Quantity: 50

Weight Uom: 20 lbs. per 100

Outer Dimensions (inches)1x1x1
