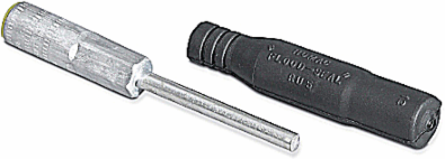

Blackburn RU 5 U 2 Flood-Seal Insulated Compression Pin Terminals, 2 Inch Length, 100 Count
- MPN: RU 5 U 2
- UPC: 783786746583
- PPN: T-B-RU 5 U 2
CAD
$72.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Flood-Seal Insulated Compression Pin Terminals, conductor size 2 Aluminum Stranded, 2 ACSR, 4 Copper Solid pin, installing dies - TU,52,BG,243, 5/8, 8A, length (P) 2 inch, length (B) 15/16.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121432 Electrical terminals
- Brand Name
- Blackburn
- Special Features
- Flood-Seal insulators ensure a watertight seal on the pin as well as around the Aluminum cable insertion. Also rated up to 600 V.
- Connection
- Crimp / Compression
- Material
- Aluminum and Copper with Tin-Plated Pin
IGCC4603 Electrical terminals
TypeFlood-Seal Insulated Compression Pin Terminals
ApplicationFor use on Aluminum Secondary Conductors Connected to Copper Clamp-Type Bushings.
Wire SizeAluminum Stranded #2, ACSR #2
Packaging
- Outer Quantity
- 100
- Weight Uom
- 10 lbs. per 100
Outer Dimensions (inches)13.375x8.25x7.875
