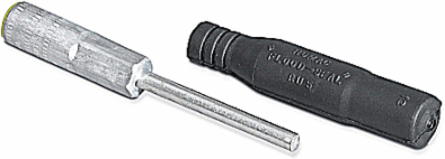

Blackburn RX 5 U 336 Flood-Seal Insulated Compression Pin Terminals, 4 Inch Length, 300-350 Sq. Inch Wire Size

MPN: RX 5 U 336
PPN: T-B-RX 5 U 336

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$134.23/ EA

Qty:

Loading add to cart quantity...

Description

Flood-Seal Insulated Compression Pin Terminals, conductor size 300-350 Aluminum Stranded, 336.4 (18/1) ACSR, 4/0 Copper Solid pin, installing dies - TX,76,249,840,11A length (P) 4 inch, length (B) 1-7/8 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Flood-Seal insulators ensure a watertight seal on the pin as well as around the Aluminum cable insertion. Also rated up to 600 V.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeFlood-Seal Insulated Compression Pin Terminals

ApplicationFor use on Aluminum Secondary Conductors Connected to Copper Clamp-Type Bushings.

Wire SizeAluminum Stranded 300-350, ACSR 336.4(18/1)

Packaging

Outer Quantity: 25

Weight Uom: 0.59 lbs. Each

Outer Dimensions (inches)13.375x8.25x7.875
