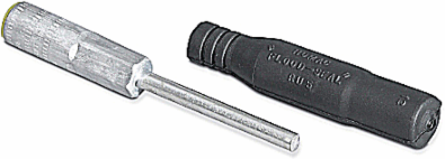

Blackburn RX 5 U 30 Flood-Seal Insulated Compression Pin Terminals, 3/0 Aluminum Stranded, 3 Inch Length

MPN: RX 5 U 30
UPC: 783786747023
PPN: T-B-RX 5 U 30

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$99.22/ EA

Qty:

Loading add to cart quantity...

Description

Flood-Seal Insulated Compression Pin Terminals, conductor size 3/0 Aluminum Stranded, 3/0 ACSR, 1/0 Copper Solid pin, installing dies - TX,76,249,840,11A, length (P) 3 inch, length (B) 1-7/8 inch.

Specifications

Packaging

Outer Quantity: 25

Weight Uom: 0.45 lbs. Each

Outer Dimensions (inches)1x1x1

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Flood-Seal insulators ensure a watertight seal on the pin as well as around the Aluminum cable insertion. Also rated up to 600 V.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeFlood-Seal Insulated Compression Pin Terminals

ApplicationFor use on Aluminum Secondary Conductors Connected to Copper Clamp-Type Bushings.

Wire SizeAluminum Stranded 3/0, ACSR 3/0
