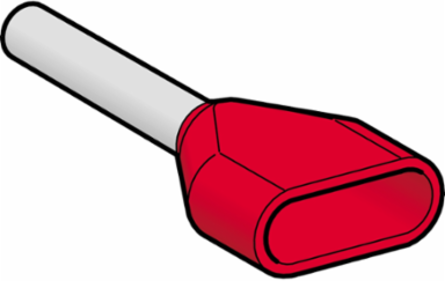

Schneider Electric AZ5DE010 Linergy TR Cable Ends, Twin Conductor, Medium Size, 1mm2, Red, 5 Sets of 100
- MPN: AZ5DE010
- PPN: SCH-AZ5DE010
CAD
$0.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Linergy cable end twin insulated without marker tag holder. It applied to twin conductor with 1 mm² cable cross section. It has red surface treatment. It is medium size without marker tag holder. Packing by dispenser pack and quantity per 5 sets of 100. Ambient air temperature for operation is from -20 to 105 °C. It conforms to NF C 63-023 standard. It is CCSAus certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Germany, France
Physical Attributes
- Bezel Size
- Ø 3.4 x 5.4 mm
- Cad Overall Depth
- 15 mm
- Cad Overall Width
- 5 mm
- Tube Length
- 8 mm
Cable End Sizemedium
Cad Overall Height3 mm
ColorRed
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Traceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Component not in scope – non independent function
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Bezel Material
- halogen-free plastic
- Cable End Type
- twin conductor
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- 5 sets of 100
- Returnability
- Yes
- Tube Diameter
- 2.25 mm
- Type Of Packing
- dispenser pack
- Length Total
- 15 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 0.200 g
- Take-back
- No
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2026-03-25
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2405008EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date0627
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 18
Cable Cross Section1-1 mm²
Number Of Cables2
Product Or Component Typecable end
Range Of ProductLinergy
Sustainable PackagingNo
Tube MaterialCopper ISO 1337
Pep CodeENVPEP2405008EN
Certificate AgencycCSAus
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2405008EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No, we have minimized the use of plastic in the packaging in compliance with regulations and considering quality and safety standards
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation-20-105 °C, -20-105 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2405008EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2405008EN
General Attributes
- Product Or Component Type
- cable end
Range Of ProductLinergy
ETIM
- ETIM 8
- EC000005
ETIM 9EC000005
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Additional Information
- without marker tag holder
