Schneider Electric ILS1W853TB1A0 Integrated Drive with 3-Phase Stepper Motor, 24-36V, 6A, 100 RPM
- MPN: ILS1W853TB1A0
- PPN: SCH-ILS1W853TB1A0
CAD
$2023.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precision in motion control applications, this integrated drive from Schneider Electric pairs seamlessly with its 3-phase stepper motor to deliver exceptional performance. Designed to operate within a voltage range of 24-36V and capable of handling up to 6A, its 100 RPM speed ensures reliable and efficient movement in various automation and control scenarios. This robust solution facilitates innovative automation solutions, making it a crucial component for any advanced motion control system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Communications & Management Attributes
- Communication Interface

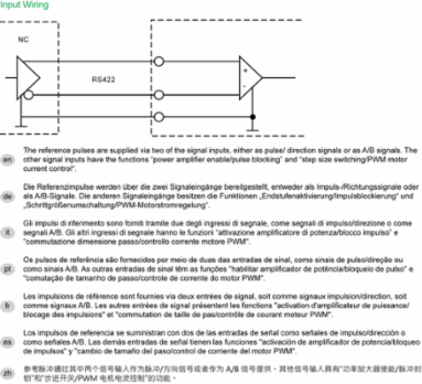

- pulse/direction 5 V RS422, Integrated
Physical Attributes

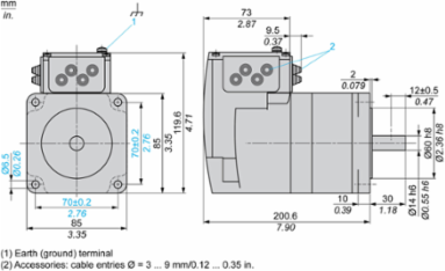

- Motor Flange Size
- 85 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Axial Force Fa
- 170 N tensile force)30 N force pressure)
- Maximum Radial Force Fr
- 110 N
Maximum Mechanical Speed2000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Coefficient 1 1
- -62.24 N.m/rpm, -62.24 N.m/rpm
- Coefficient 2 2
- -5.664 N.m/rpm², -5.664 N.m/rpm²
- Speed Feedback Resolution
- 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
- Voltage State 0 Guaranteed
- -3...4.5 V, -3...4.5 V
- [Us] Rated Supply Voltage
- 36 V, 24 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 5 kg CO2 eq., 5.421297158367538
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 61 kg CO2 eq., 60.69166080198889
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1411002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Associated Fuse Rating
- 10 A
- Circle Diameter Of The Mounting Holes
- 99 mm
- Coefficient 1 2
- 19.385 N.m/rpm²
- Coefficient 2 1
- 3.756 N.m/rpm
- Compatibility Code
- ILS
- Current Consumption
- 6000 mA maximum continuous
- Device Short Name
- ILS
- Feedback Type
- index pulse
- Holding Brake
- without
- Marking
- CE
- Mounting Holes Diameter
- 6.5 mm
- Network Number Of Phases
- 1
- Nominal Speed
- 100 rpm 24 V300 rpm 36 V
- Number Of Motor Poles
- 6
- Number Of Mounting Holes
- 4
- Phase
- single phase
- Product Or Component Type
- motion integrated drive
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 14 mm
- Shock Resistance
- 150 m/s² 1000 shocks EN/IEC 60068-2-29
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Voltage 1
- 24 V
- Voltage 1 Speed 1 Max
- 112.33 rpm
- Voltage 2 Speed 2
- 284.734 rpm
- Voltage State 1 Guaranteed
- 15...30 V
- Winding Type
- high speed of rotation and medium torque
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Recyclability Potential In %
- 85
- Input/Output Type
- 4 signals (each be used as input or output)
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501512040
Coefficient 1 3-2.06 N.m/rpm3, -2.06 N.m/rpm3
Protection Typesafe torque off, short circuit of the output voltage, overload of output voltage
Supply Voltage Descriptionsingle phase 24 V DC, single phase 36 V DC
Certificate AgencycUL, UL, TÜV
Carbon Footprint Of The Distribution Phase [A4]7.533353304145811, 8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]2.698645730336541, 3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]677 kg CO2 eq., 677.1228396132718
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - integrated drive
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Centring Collar Diameter60 mm
Coefficient 1 068.379 N.m
Coefficient 2 015.083 N.m
Coefficient 2 30.968 N.m/rpm3
Continuous Stall Torque4.5 N.m
Curve Typesemilog
Electrical Connectionprinted circuit board connector
Gear Box Typewithout
Holding Torque4.5 N.m
Motor Type3-phase stepper motor
Mounting Supportflange
Network TypeDC
Nominal Torque4.5 N.m
Number Of Motor Stacks3
Peak Stall Torque4.5 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium integrated drive
Rotor Inertia3.3 kg.cm²
Service Life In Hours20000 h bearing
Shaft Enduntapped
Sizing ReferenceILS1_853T
Supply Voltage Limits18-40 V
Total Lifecycle Carbon Footprint753 kg CO2 eq.
Vibration Resistance20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6
Voltage 1 Speed 1112.33 rpm
Voltage 236 V
Voltage 2 Speed 2 Max284.734 rpm
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1411002EN
Pep Verification Date2026-03-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Length Total200.6 mm
Accuracy Error [Angular]0.1 °
Package Weight(Lbs)5.600 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 753.4677966081106
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to EN/IEC 60034-5IP54 total except shaft bushing: conforming to EN/IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V safety input
