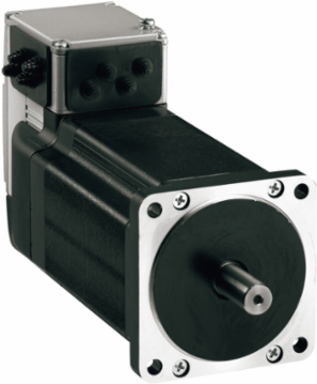

Schneider Electric ILS2K853TB1A0 Integrated Drive with Stepper Motor, 24/48V, 6A, 4.7kg Weight, EtherNet/IP
Schneider Electric ILS2K853TB1A0 Integrated Drive with Stepper Motor, 24/48V, 6A, 4.7kg Weight, EtherNet/IP
- MPN: ILS2K853TB1A0
- PPN: SCH-ILS2K853TB1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2373.23/ EA
Description
The Schneider Electric Integrated Drive with Stepper Motor stands out as an essential component for modern automation and control applications. With its compatibility with EtherNet/IP, this drive facilitates seamless communication and integration within advanced industrial systems. Operating at 24/48V and providing 6A of output, it is designed for precise motion control, making it ideal for a variety of applications that require reliable performance. Weighing in at 4.7kg, it offers a compact solution without compromising on power or efficiency, making it a vital addition to any automation toolkit.
Specifications
- Voltage
- 18-55 V supply voltage limits; 24 V or 48 V rated supply voltage
- Speed
- 200 rpm at 24 V, 400 rpm at 48 V nominal speed; 3000 rpm maximum mechanical speed
- Motor Type
- 3-phase stepper motor
- Phase
- Single phase

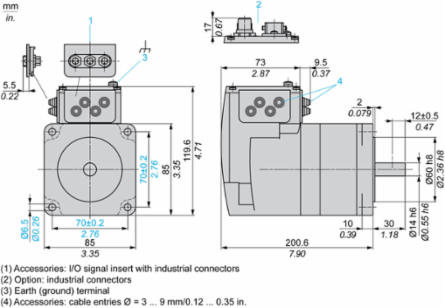

- Length
- 200.6 mm (7.90 in)
- Shaft Diameter
- 14 mm (0.55 in)
- Number of Motor Stacks
- 3
- Mounting Holes Diameter
- 6.5 mm (0.26 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Mounting Support
- Flange
- Material
- Not specified
- Electrical Connection
- Printed circuit board connector
- Gear Box Type
- Without
- Speed Feedback Resolution
- 20000 points/turn
- Associated Fuse Rating
- 16 A
- Ambient Storage Temperature
- -25 to 70 °C
- Relative Humidity
- 15-85% without condensation
- Shock Resistance
- 150 m/s², 1000 shocks IEC 60068-2-29
- Product Certifications
- UL, cUL, TUV
- Country of Origin
- Germany
- Commissioning Interface
- RS485 Modbus TCP at 9.6, 19.2, and 38.4 kbauds
- Input/Output Type
- 4 signals, each used as input or output
- Discrete Output Voltage
- 23-25 V
- Sustainable Offer Status
- Green Premium product
- Circularity Profile
- ENVEOLI1411002EN
- Mercury Free
- Yes
- Second Shaft
- Without second shaft end
- Rohs Exemption Information
- Yes
Current6 A maximum continuous current consumption
Torque4.5 N.m nominal, holding, peak stall, and continuous stall torque
Number of Motor Poles6
Transmission Rate125, 250, 500 kbauds
Motor Flange Size85 mm (3.35 in)
Shaft Length30 mm (1.18 in)
Number of Mounting Holes4
Circle Diameter of Mounting Holes99 mm (3.90 in)
Centring Collar Depth2 mm (0.08 in)
Shaft EndUntapped
Winding TypeHigh speed of rotation and medium torque winding
Holding BrakeWithout
Feedback TypeIndex pulse
Protection TypeSafe torque off, short circuit and overload of output voltage protection
Ambient Operating Temperature0 to 40 °C without derating; 40 to 55 °C with 2% per °C derating
Operating AltitudeUp to 1000 m without derating
Vibration Resistance20 m/s², 10-500 Hz, 10 cycles IEC 60068-2-6
IP Degree of ProtectionIP41 shaft bushing; IP54 total except shaft bushing (IEC 60034-5)
StandardsIEC 50178, EN 61800-3:2001 second environment, IEC 60072-1, IEC 50347, IEC 61800-3 Ed 2
Device Short NameILS
Network TypeDC
Discrete Input Current10 mA at 24 V safety input; 2 mA at 24 V signal interface
Maximum Switching Current100 mA per output, 200 mA total
Warranty18 months
Environmental DisclosureENVPEP1411002EN
Reach RegulationContains SVHC above threshold
MarkingCE
China Rohs RegulationX
