Schneider Electric ILS1F572PB1A0 Integrated Drive with Stepper Motor, 24-36V, 3.5A, IP54, 1.6kg
- MPN: ILS1F572PB1A0
- PPN: SCH-ILS1F572PB1A0
CAD
$1617.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301 communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 36V DC, a maximum current consumption of 3500mA and a nominal speed of 600RPM at 36V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 115.9mm and the centering collar dimensions are 1.6mm (depth) x 38.1mm (diameter). It weighs 1.6kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, IEC 61800-3, Ed 2, IEC 60072-1 and EN/IEC 50178 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Communications & Management Attributes
- Communication Interface
- CANopen DS301, Integrated
Physical Attributes
- Motor Flange Size
- 57 mm
Shaft Length21 mm
Complementary Attributes
- Maximum Axial Force Fa
- 100 N tensile force)8.4 N force pressure)
- Maximum Radial Force Fr
- 24 N
Maximum Mechanical Speed3000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Coefficient 1 1
- -24.392 N.m/rpm, -24.392 N.m/rpm
- Coefficient 2 0
- -83.153 N.m, -83.153 N.m
- Protection Type
- safe torque off, overload of output voltage, short circuit of the output voltage
- Voltage State 0 Guaranteed
- -3...4.5 V, -3...4.5 V
- [Us] Rated Supply Voltage
- 24 V, 36 V
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 1.8411150349593286
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 21 kg CO2 eq., 20.611364021381327
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1411002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1907
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Associated Fuse Rating
- 10 A
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Coefficient 1 2
- 7.183 N.m/rpm²
- Coefficient 2 3
- 2.852 N.m/rpm3
- Continuous Stall Torque
- 0.9 N.m
- Curve Type
- semilog
- Electrical Connection
- printed circuit board connector
- Gear Box Type
- without
- Holding Torque
- 1.02 N.m
- Motor Type
- 3-phase stepper motor
- Mounting Support
- flange
- Network Type
- DC
- Nominal Torque
- 0.9 N.m
- Number Of Motor Stacks
- 2
- Peak Stall Torque
- 0.9 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium integrated drive
- Rotor Inertia
- 0.22 kg.cm²
- Service Life In Hours
- 20000 h bearing
- Shaft End
- untapped
- Sizing Reference
- ILS1_572P
- Speed Feedback Resolution
- 20000 points/turn
- Sustainable Packaging
- No
- Transmission Rate
- 50, 100, 125, 250, 500, 800 and 1000 kbauds
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Voltage 1 Speed 1
- 309.933 rpm
- Voltage 2
- 36 V
- Voltage 2 Speed 2 Max
- 519.145 rpm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1411002EN
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.

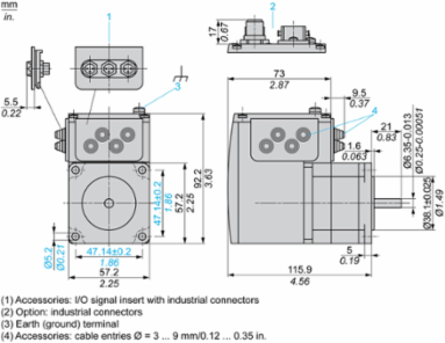

- Length Total
- 115.9 mm
- Accuracy Error [Angular]
- 0.1 °
- Package Weight(Lbs)
- 1.732 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Coefficient 1 3-0.719 N.m/rpm3, -0.719 N.m/rpm3
Coefficient 2 2-26.823 N.m/rpm², -26.823 N.m/rpm²
Supply Voltage Descriptionsingle phase 36 V DC, single phase 24 V DC
Certificate AgencycUL, UL, TÃœV
Carbon Footprint Of The Distribution Phase [A4]2.5583858672118716, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.9164812558711548, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]313 kg CO2 eq., 313.33760778644705
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - integrated drive
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Centring Collar Diameter38.1 mm
Coefficient 1 028.202 N.m
Coefficient 2 182.762 N.m/rpm
Compatibility CodeILS
Current Consumption3500 mA maximum
Device Short NameILS
Feedback Typeindex pulse
Holding Brakewithout
MarkingCE
Mounting Holes Diameter5.2 mm
Network Number Of Phases1
Nominal Speed300 rpm 24 V600 rpm 36 V
Number Of Motor Poles6
Number Of Mounting Holes4
Phasesingle phase
Product Or Component Typemotion integrated drive
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Diameter6.35 mm
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Software Versionv6.2.5-6
Supply Voltage Limits18-40 V
Total Lifecycle Carbon Footprint339 kg CO2 eq.
Type Of Coolingnatural convection
Voltage 124 V
Voltage 1 Speed 1 Max309.933 rpm
Voltage 2 Speed 2519.145 rpm
Voltage State 1 Guaranteed15...30 V
Winding Typemedium speed of rotation and medium torque
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Germany, DE
Recyclability Potential In %85
Input/Output Type4 signals (each be used as input or output)
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501314000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 339.26495396587075
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V on/STO_A safety input3-3 mA at 24 V on/STO_B safety input, 2-2 mA at 24 V 24 V signal interface
