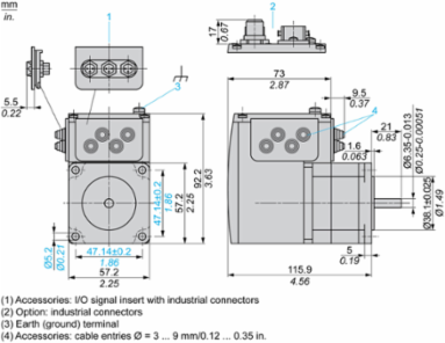

Schneider Electric ILS1F572PC1A0 Integrated Stepper Motor Drive 24V/36V, 3.5A, 600RPM, IP54
- MPN: ILS1F572PC1A0
- PPN: SCH-ILS1F572PC1A0
- UNSPSC: 26111516
CAD
$1970.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301 communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 36V DC, a maximum current consumption of 3500mA and a nominal speed of 600RPM at 36V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with industrial connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 115.9mm and the centering collar dimensions are 1.6mm (depth) x 38.1mm (diameter). It weighs 1.6kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN/IEC 61800-3, EN/IEC 50178, EN 61800-3 2001-02, EN 50347, EN 61800-3 2001 and IEC 60072-1 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
Features
- Integrated drive ILS with stepper motor
- High torque at low speeds
- Superior constant velocity characteristics
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Germany |
|---|
| Weight | 2400 g |
|---|
Communications & Management Attributes
| Communication Interface | CANopen DS301, Integrated |
|---|
Physical Attributes
| Motor Flange Size | 57 mm |
|---|
| Shaft Length | 21 mm |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 36 V, 24 V |
|---|---|
| Maximum Mechanical Speed | 3000 rpm |
| Maximum Switching Current | 100 mA per output200 mA total |
| Maximum Axial Force Fa | 100 N tensile force)8.4 N force pressure) |
|---|---|
| Maximum Radial Force Fr | 24 N |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Coefficient 1 1 | -24.392 N.m/rpm, -24.392 N.m/rpm |
| Coefficient 2 0 | -83.153 N.m, -83.153 N.m |
| Protection Type | overload of output voltage, short circuit of the output voltage, safe torque off |
| Voltage State 0 Guaranteed | -3...4.5 V, -3...4.5 V |
| Carbon Footprint Of The Distribution Phase A4 | 3.5451074372450875, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.2699509319230782, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 385 kg CO2 eq., 385.4897855953305 |
| Local Publishable Date | 2026-01-12 |
| Device Type | Motion - integrated drive |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Centring Collar Diameter | 38.1 mm |
| Coefficient 1 0 | 28.202 N.m |
| Coefficient 2 1 | 82.762 N.m/rpm |
| Compatibility Code | ILS |
| Current Consumption | 3500 mA maximum |
| Device Short Name | ILS |
| Feedback Type | index pulse |
| Holding Brake | without |
| Marking | CE |
| Mounting Holes Diameter | 5.2 mm |
| Network Number Of Phases | 1 |
| Nominal Speed | 300 rpm 24 V600 rpm 36 V |
| Number Of Motor Poles | 6 |
| Number Of Mounting Holes | 4 |
| Phase | single phase |
| Product Or Component Type | motion integrated drive |
| Returnability | No |
| Second Shaft | without second shaft end |
| Shaft Diameter | 6.35 mm |
| Shock Resistance | 150 m/s² 1000 shocks IEC 60068-2-29 |
| Software Version | v6.2.5-6 |
| Supply Voltage Limits | 18-40 V |
| Total Lifecycle Carbon Footprint | 421 kg CO2 eq. |
| Type Of Cooling | natural convection |
| Voltage 1 | 24 V |
| Voltage 1 Speed 1 Max | 309.933 rpm |
| Voltage 2 Speed 2 | 519.145 rpm |
| Voltage State 1 Guaranteed | 15...30 V |
| Winding Type | medium speed of rotation and medium torque |
| Data Source | extrapolated product |
| Input/Output Type | 4 signals (each be used as input or output) |
| Customs Code | 8501314000 |
| Functional Unit Description | To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 85 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Coefficient 1 3 | -0.719 N.m/rpm3, -0.719 N.m/rpm3 |
| Coefficient 2 2 | -26.823 N.m/rpm², -26.823 N.m/rpm² |
| Supply Voltage Description | single phase 36 V DC, single phase 24 V DC |
| Certificate Agency | TÜV, cUL, UL |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 3 kg CO2 eq., 2.5511986627611942 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 29 kg CO2 eq., 28.560781553877124 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1411002EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Associated Fuse Rating | 10 A |
| Circle Diameter Of The Mounting Holes | 66.6 mm |
| Coefficient 1 2 | 7.183 N.m/rpm² |
| Coefficient 2 3 | 2.852 N.m/rpm3 |
| Continuous Stall Torque | 0.9 N.m |
| Curve Type | semilog |
| Electrical Connection | industrial connector |
| Gear Box Type | without |
| Holding Torque | 1.02 N.m |
| Motor Type | 3-phase stepper motor |
| Mounting Support | flange |
| Network Type | DC |
| Nominal Torque | 0.9 N.m |
| Number Of Motor Stacks | 2 |
| Peak Stall Torque | 0.9 N.m |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Lexium integrated drive |
| Rotor Inertia | 0.22 kg.cm² |
| Service Life In Hours | 20000 h bearing |
| Shaft End | untapped |
| Sizing Reference | ILS1_572P |
| Speed Feedback Resolution | 20000 points/turn |
| Sustainable Packaging | No |
| Transmission Rate | 50, 100, 125, 250, 500, 800 and 1000 kbauds |
| Vibration Resistance | 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6 |
| Voltage 1 Speed 1 | 309.933 rpm |
| Voltage 2 | 36 V |
| Voltage 2 Speed 2 Max | 519.145 rpm |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2024-01 |
| Length Total | 115.9 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 421.416824181137 |
| Circularity Profile | ENVEOLI1411002EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Permissible Ambient Air Temperature Around The Device | 105 °C power amplifier110 °C motor |
| Relative Humidity | 15-85 % without condensation |
| Pep Verification Date | 2026-03-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating) |
| Environmental Disclosure | ENVPEP1411002EN |
| Ip Degree Of Protection | IP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1411002EN |
| Pcr Version | PCR-4-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | single phase |
|---|---|
| Range Of Product | Lexium integrated drive |
| Product Or Component Type | motion integrated drive |
|---|
ETIM
| ETIM 8 | EC001851 |
|---|---|
| ETIM 10 | EC001851 |
| ETIM 9 | EC001851 |
|---|
Output Attributes
| Discrete Output Voltage | 23...25 V |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Discrete Input Current | 10-10 mA at 24 V on/STO_A safety input3-3 mA at 24 V on/STO_B safety input, 2-2 mA at 24 V 24 V signal interface |
|---|
