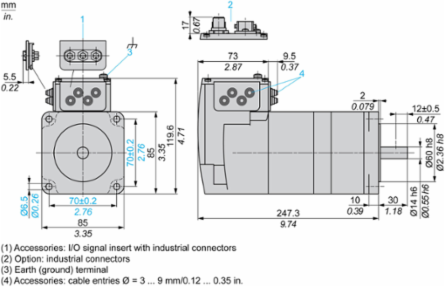

Schneider Electric ILS2K853TB1F0 Integrated Drive with Stepper Motor, 24-48V, 6A, 4.5 N.m Torque
- MPN: ILS2K853TB1F0
- PPN: SCH-ILS2K853TB1F0
CAD
$3294.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric offers an advanced integrated drive featuring a powerful stepper motor designed for efficient motion control applications. With a voltage range of 24-48V and a robust output current of 6A, this drive ensures precise operation and reliable performance in various automation projects. The impressive torque of 4.5 N.m allows for smooth movements across a range of tasks, making it an ideal choice for those looking to enhance the capability of their automation systems. This product stands out in the realms of automation and motion control, providing an effective solution for modern manufacturing and engineering needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Communications & Management Attributes
- Communication Interface
- Ethernet/IP, Integrated
Physical Attributes
- Motor Flange Size
- 85 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Axial Force Fa
- 170 N tensile force)30 N force pressure)
- Maximum Radial Force Fr
- 110 N
Maximum Mechanical Speed3000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Coefficient 1 1
- -49.629 N.m/rpm, -49.629 N.m/rpm
- Coefficient 2 0
- -121.105 N.m, -121.105 N.m
- Holding Torque
- 6 N.m holding brake, 4.5 N.m
- Supply Voltage Description
- single phase 48 V DC, single phase 24 V DC
- Certificate Agency
- TÜV, cUL, UL
- Carbon Footprint Of The Distribution Phase [A4]
- 8.862768593112719, 9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 3.1748773298076953, 3 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 774 kg CO2 eq., 774.3338576192524
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - integrated drive
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Brake Application Time
- 20 ms
- Centring Collar Diameter
- 60 mm
- Coefficient 1 0
- 63.333 N.m
- Coefficient 2 1
- 139.136 N.m/rpm
- Compatibility Code
- ILS
- Current Consumption
- 6000 mA maximum continuous
- Device Short Name
- ILS
- Feedback Type
- index pulse
- Holding Brake
- with
- Motor Type
- 3-phase stepper motor
- Mounting Support
- flange
- Network Type
- DC
- Nominal Torque
- 4.5 N.m
- Number Of Motor Stacks
- 3
- Peak Stall Torque
- 4.5 N.m
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium integrated drive
- Rotor Inertia
- 3.5 kg.cm²
- Service Life In Hours
- 20000 h bearing
- Shaft End
- untapped
- Sizing Reference
- ILS2_853T
- Speed Feedback Resolution
- 20000 points/turn
- Sustainable Packaging
- No
- Transmission Rate
- 125, 250, 500 kbauds
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Voltage 1 Speed 1
- 210.424 rpm
- Voltage 2
- 48 V
- Voltage 2 Speed 2 Max
- 377.097 rpm
- Winding Type
- high speed of rotation and medium torque
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Germany, DE
- Recyclability Potential In %
- 85
- Input/Output Type
- 4 signals (each be used as input or output)
- Brake Pull-in Power
- 22 W
- Package Weight(Lbs)
- 6.0 kg
- Warranty (In Months)
- 18
Coefficient 1 3-1.231 N.m/rpm3, -1.231 N.m/rpm3
Coefficient 2 2-49.793 N.m/rpm², -49.793 N.m/rpm²
Protection Typesafe torque off, short circuit of the output voltage, overload of output voltage
Voltage State 0 Guaranteed-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage24 V, 48 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]6 kg CO2 eq., 6.377996656902985
Carbon Footprint Of The Manufacturing Phase [A1 To A3]71 kg CO2 eq., 71.40195388469282
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating16 A
Brake Release Time40 ms
Circle Diameter Of The Mounting Holes99 mm
Coefficient 1 213.323 N.m/rpm²
Coefficient 2 35.71 N.m/rpm3
Continuous Stall Torque4.5 N.m
Curve Typesemilog
Electrical Connectionprinted circuit board connector
Gear Box Typewithout
MarkingCE
Mounting Holes Diameter6.5 mm
Network Number Of Phases1
Nominal Speed200 rpm 24 V400 rpm 48 V
Number Of Motor Poles6
Number Of Mounting Holes4
Phasesingle phase
Product Or Component Typemotion integrated drive
ReturnabilityNo
Second Shaftwithout second shaft end
Shaft Diameter14 mm
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Software Versionv6.2.5-6
Supply Voltage Limits18-55 V
Total Lifecycle Carbon Footprint864 kg CO2 eq.
Type Of Coolingnatural convection
Voltage 124 V
Voltage 1 Speed 1 Max210.424 rpm
Voltage 2 Speed 2377.097 rpm
Voltage State 1 Guaranteed15...30 V
Pep CodeENVPEP1411002EN
Pep Verification Date2026-03-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Length Total247.3 mm
Accuracy Error [Angular]0.1 °
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501512040
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 864.1514540837686
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40-55 °C (with power derating of 2 % per °C)0-40 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V safety input2-2 mA at 24 V 24 V signal interface
